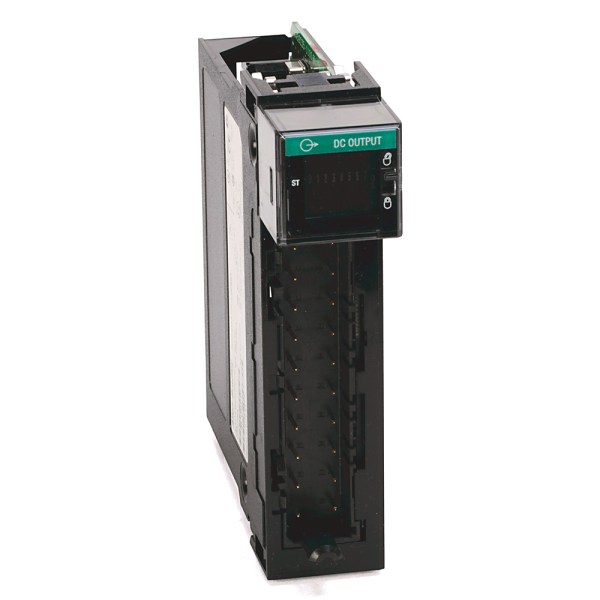

ControlLogix 8 Point D/O Module
SKU: 1756-OH8I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OH8I is a high-voltage DC digital output module specifically built for ControlLogix systems.
It has eight individually isolated output channels, each capable of switching loads independently.
This isolation improves safety and flexibility, particularly in complicated industrial contexts where electrical separation of outputs is crucial.
Voltage range: 90-146 V DC.
Output Channels: eight isolated points.
Current capacity: up to 2 amps per channel.
Isolation: Each output is electrically isolated from the other.
Hot-swappable: Can be replaced without turning off the system.
Status LEDs provide real-time feedback for each output.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Output Type: 8-point isolated digital outputs.
Voltage Range: 90–146V DC.
Current Rating:
Per Channel: Up to 2 A.
Total Module: 8 A max at 60°C.
Response Time: 2 ms (ON/OFF).
Leakage Current (OFF-state): <1 mA per point.
Minimum Load: 2 mA per channel.
Isolation:
250V output-to-backplane.
1350V AC insulation tested for 2 seconds.
Environmental Ratings:
Operating Temperature: 0°C to 60°C.
Humidity: 5% to 95% RH, non-condensing.
Shock: 20G.
Vibration: 2G (10–500 Hz).
Mechanical & Integration:
Form Factor: Fits any ControlLogix chassis slot.
Terminal Base Compatibility: 1756-TBCH or 1756-TBS6H.
Power Dissipation: 3.3W.
Backplane Current Draw: 210 mA @ 5V.
Hot-Swappable: Yes.
Status Indicators: LED for each output channel.
Dimensions: 237.5 × 183 × 55 mm.
Weight: Approx. 0.35 kg.
