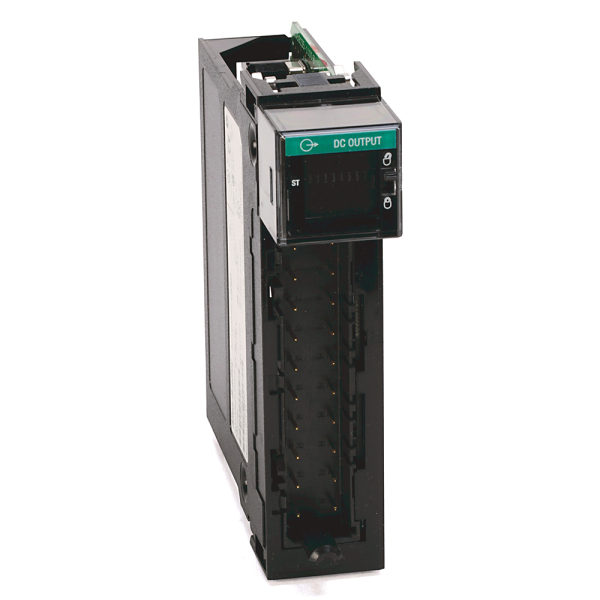

ControlLogix 8 Point D/O Module
SKU: 1756-ON8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-ON8 is a high-performance AC digital output module intended for use with ControlLogix systems.
It has eight individually isolated output channels, each capable of switching 240V AC loads precisely and reliably.
This module is suited for industrial applications that demand reliable and safe control of actuators, solenoids, and motors.
Voltage range is 10-30V AC (rated for 240V AC operation).
Current capacity: up to 2 amps per channel.
Isolation: Each output is electrically separated to increase safety.
Hot-swappable: Can be installed or removed without turning off the machine.
Status Indicators: LEDs for each output channel.
Environmental Resilience: Operates reliably under tough industrial circumstances.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Output Type: 8-point AC digital outputs.
Voltage Range: 10–30V AC (rated for 240V AC operation).
Current Capacity:
Per Channel: Up to 2 A continuous @ 60°C.
Total Module: 5 A max @ 30°C, 4 A max @ 60°C.
Frequency Response: 50–60 Hz ±1%.
Response Time: ~9.3 ms @ 60 Hz.
Isolation Voltage: 50V continuous (channel-to-backplane).
Leakage Current: Minimal, suitable for standard AC loads.
Environmental Ratings:
Operating Temperature: 0°C to 60°C.
Humidity: 5% to 95% non-condensing.
Shock Resistance: 30G.
Vibration: Meets industrial standards.
Mechanical & Integration:
Form Factor: ControlLogix chassis slot.
Terminal Block Compatibility: 1756-TBNH, 1756-TBSH.
Power Dissipation: Max 5.1W @ 60°C.
Backplane Current Draw: 200 mA @ 5V.
Hot-Swappable: Yes — supports live replacement.
Status Indicators: LED per output channel.
Dimensions: 237.5 × 183 × 55 mm.
Weight: ~1.1 kg.
