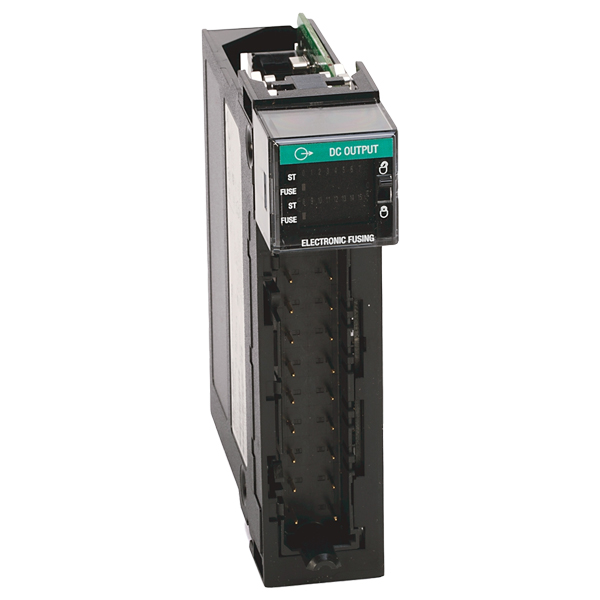

ControlLogix 16 Point D/O Module
SKU: 1756-OV16E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OV16E is a 16-point digital output module for the ControlLogix platform that can control DC-powered devices such solenoids, relays, and indicator lights.
It has electronic protection for each output channel, which helps to prevent damage from short circuits and overload.
This module is suited for applications that need high-speed switching, diagnostics, and individual channel protection.
It supports sourcing output (positive logic), which means it can supply current to the load.
Buy currently uses Select Automation shop pricing and checkout.
Output Capabilities:
Channels: 16 sourcing outputs.
Voltage Range: 10–30V DC.
Nominal Voltage: 24V DC.
Output Type: Sourcing (positive logic).
Max Output Current:
1.0 A per channel.
8.0 A total per module.
Protection:
Electronic short-circuit protection per channel.
Overload and thermal shutdown.
Isolation:
Channel-to-backplane isolation.
No channel-to-channel isolation.
Mechanical & Software:
Module Width: Single slot.
RTB Required: e.g., 1756-TBNH or 1756-TBSH.
Status Indicators:
Individual channel status LEDs.
Module status LED.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
