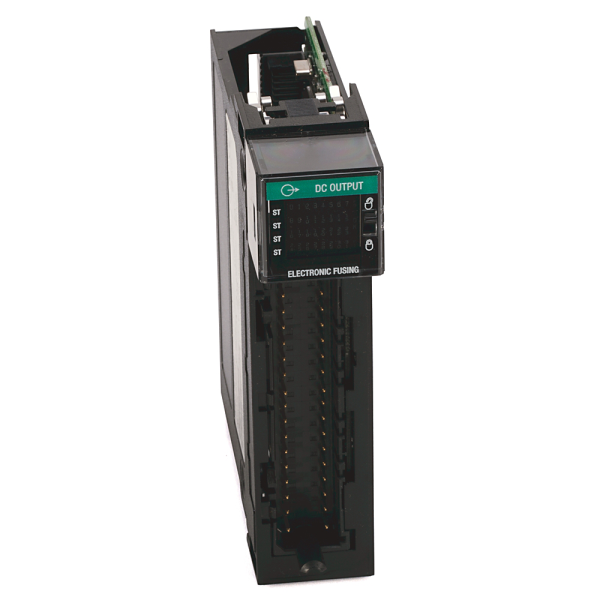

ControlLogix 32 Point D/O Module
SKU: 1756-OV32E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 1756-OV32E is a high-density digital output module intended for use with ControlLogix® systems.
It has 32 independently fused source outputs for DC control applications, making it appropriate for settings requiring quick switching, fault tolerance, and small I/O configurations.
This module includes electronic fusing per channel, which automatically resets after fault conditions are resolved, eliminating the need for manual fuse replacement.
It allows hot-swapping, allowing maintenance without shutting down the system, and has status indicators for each channel to make diagnostics easier.
With strong protection against short circuits, overloads, and thermal stress, the 1756-OV32E, designed for industrial automation, provides dependable performance under challenging circumstances.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Output Type: DC sourcing (positive logic).
Channels: 32 individually fused outputs.
Voltage Range: 10–30V DC.
Current per Output:
Up to 0.5 A @ 50°C.
Surge: 2 A for 10 ms (non-repetitive).
Total Module Current: 16 A max.
Voltage Drop: 350 mV @ 0.5 A.
Leakage Current (OFF state): <1 mA per channel.
Minimum Load: 2 mA.
Protection & Diagnostics:
Electronic Fusing: Built-in per channel — no physical fuses to replace.
Auto-Reset: Faults clear automatically when overload or short-circuit conditions normalize.
Per-Point Fault Isolation: Prevents one fault from affecting other outputs.
LED Indicators:
Green = Active.
Red = Fault.
Yellow = Configuration mode.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Humidity: 5% to 95% non-condensing.
Shock Resistance: 30G.
Vibration: 5G @ 10–500 Hz.
Mechanical & Integration:
Form Factor: Single-slot ControlLogix module.
Hot-Swappable: Yes — supports live replacement.
Terminal Block Compatibility:
1756-TBCH.
1756-TBS6H.
Power Consumption: 5.88 W max @ 60°C.
Dimensions: 237.5 × 183 × 55 mm.
Weight: ~0.25 kg.
