ControlLogix 16 Pt Digital Relay Module
SKU: 1756-OW16I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

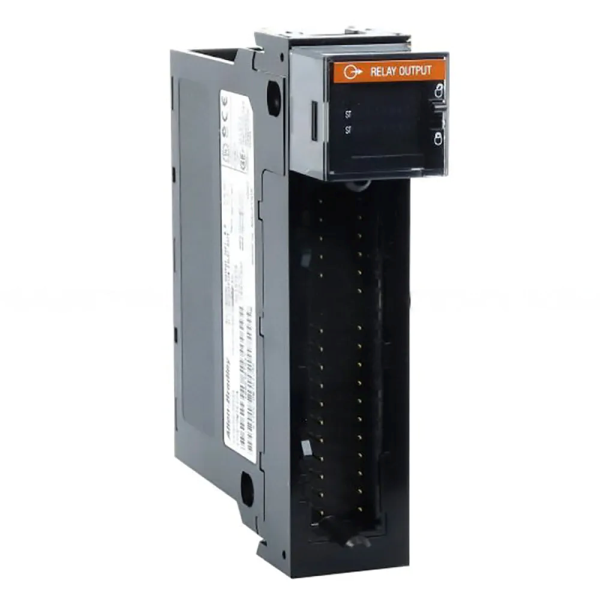

The 1756-OW16I is a 16-point digital relay output module for the ControlLogix system, including individually separated electromechanical relay connections.
Each output channel may handle AC or DC loads, making this module perfect for controlling devices such as solenoids, motor starters, indicator lights, and other field actuators.
What distinguishes the 1756-OW16I is its separate isolation per channel, which improves safety and noise immunity in mixed voltage settings.
The module supports Form A (usually open) relay contacts and has LED indicators for each output, which provide clear status feedback.
This module is particularly beneficial in applications that need physical separation of outputs or where electrical isolation is crucial to system integrity.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Type: Electromechanical relay (Form A, normally open).
Number of Outputs: 16 individually isolated channels.
Voltage Range:
DC: 5–125V DC.
AC: 5–125V AC (some sources list up to 240V AC for resistive loads).
Current Ratings:
DC resistive: 0.25 A @ 125V DC.
AC resistive: 2.0 A @ 125/240V AC.
Inductive loads: 0.5 A max per point.
Contact Life:
Resistive: ~100,000 operations.
Inductive: ~10,000 operations.
Mechanical & Mounting:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH, 1756-TBSH).
Status Indicators: One LED per output channel.
Hot-Swappable: Yes (when used with RTB).
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
