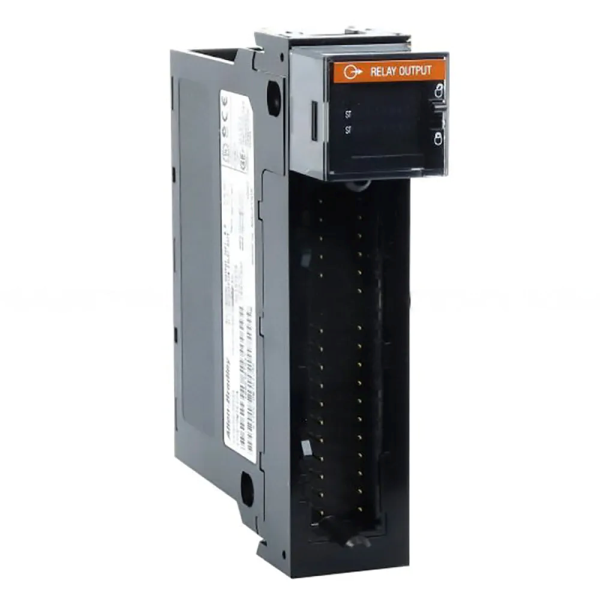

ControlLogix 16 Point Digital Output Rel
SKU: 1756-OW16IK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OW16IK is a complete digital relay output kit for the ControlLogix platform, capable of switching AC or DC loads via electromechanical relays.
This kit comprises the 1756-OW16I output module, a 1756-CPR2 power cable, and a 1756-PSCA2 chassis adapter, making it ideal for systems that require isolated relay control.
Each of the 16 output channels is separately isolated, which improves safety and noise immunity—particularly beneficial in mixed-voltage situations or applications that require electrical separation between outputs.
The module supports Form A (usually open) relay contacts and has LED indicators for each channel to show output status.
This kit is perfect for operating solenoids, motor starters, pilot lights, and other field devices in industrial automation systems that require dependable switching and physical isolation.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Type: Electromechanical relay (Form A, normally open).
Number of Outputs: 16 individually isolated channels.
Voltage Range:
DC: 5–150V DC.
AC: 10–265V AC.
Current Ratings:
0.25 A @ 125V DC.
2.0 A @ 125/240V AC (resistive load).
Contact Life:
Resistive: ~100,000 operations.
Inductive: ~10,000 operations.
Mechanical & Mounting:
Kit Includes:
1756-OW16I relay output module.
1756-CPR2 power cable.
1756-PSCA2 chassis adapter.
Mounting: External to ControlLogix chassis via adapter.
Status Indicators: One LED per output channel.
Hot-Swappable: Yes (when used with RTB).
RTB Required: e.g., 1756-TBNH or 1756-TBSH.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
