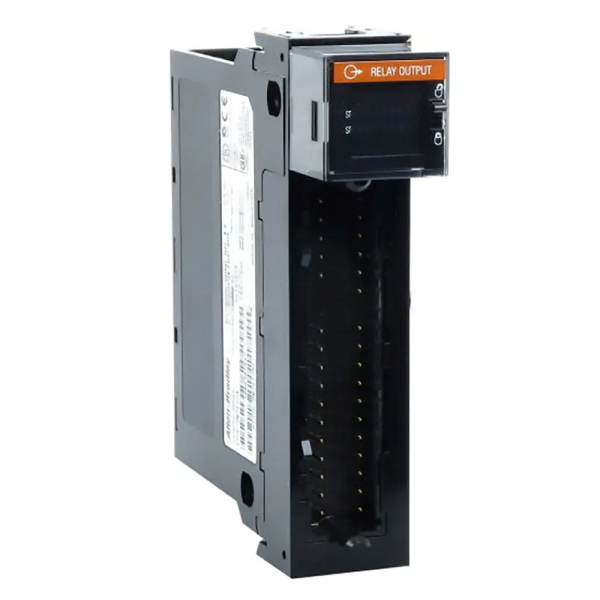

ControlLogix 8 Pt Digital Relay Module
SKU: 1756-OX8I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OX8I is an 8-point digital relay output module for the ControlLogix system, including individually separated electromechanical relay connections.
Each channel supports both ordinarily open (NO) and usually closed (NC) modes, making it excellent for switching AC or DC loads in industrial automation applications.
This module is ideal for applications that require electrical isolation between outputs, such as controlling solenoids, motor starters, pilot lights, or other field devices via mixed-voltage networks.
The 1756-OX8I provides dependable performance in severe environments, thanks to its Form C relay connections and excellent environmental ratings.
LED indications give unambiguous status feedback for each output, and the module supports hot-swapping when used with a removable terminal block (RTB), reducing downtime during maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Type: Electromechanical relay (Form C – normally open and normally closed).
Number of Outputs: 8 individually isolated channels.
Voltage Range:
DC: 5–125V DC.
AC: 5–265V AC.
Current Ratings:
0.25 A @ 125V DC.
2.0 A @ 125/240V AC (resistive load).
Contact Life:
Resistive: ~100,000 operations.
Inductive: ~10,000 operations.
Isolation: Between channels and from backplane.
Mechanical & Mounting:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: One LED per output channel.
Hot-Swappable: Yes (when used with RTB).
Configuration Software: Compatible with RSLogix 5000.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
