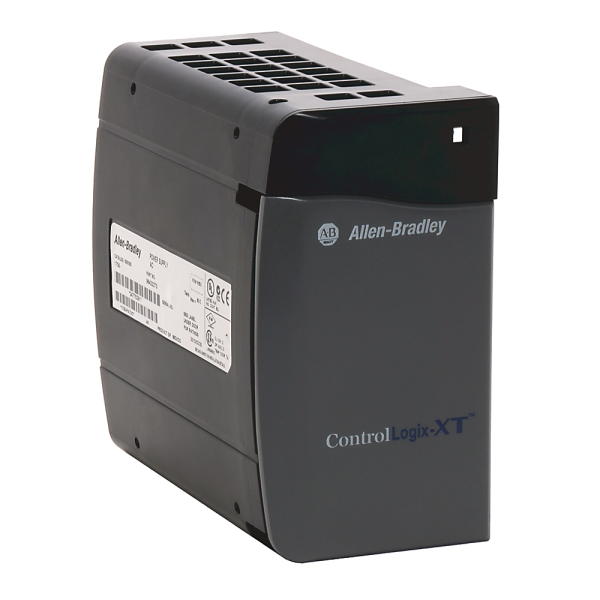

ControlLogix AC XT Power Supply
SKU: 1756-PA30XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PA30XT is a high-performance AC power supply module for ControlLogix-XT™ chassis in tough industrial settings.
For ControlLogix systems working in Zone 2 / Class I Div 2 hazardous situations, it provides dependable backplane power.
It is designed to endure high humidity, corrosive atmospheres, and harsh temperatures.
This XT-rated module has a conformal coating for added protection and supports a wide input voltage range (85-265 V AC), making it perfect for distributed control systems in industries including oil and gas, mining, utilities, and transportation.
Extended temperature range: -25 to +70 degrees Celsius.
Conformal coating designed to resist corrosion.
Supports redundant power setups.
Delivers up to 30 watts of backplane power.
Certified for use in hazardous environments (ATEX, IECEx, UL).
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage Range: 85–265 V AC.
Frequency: 47–63 Hz.
Max Input Power: 50 W.
Max Output Power: 30 W.
Backplane Output Currents:
1.5 A @ 1.2 V.
2 A @ 3.3 V.
6 A @ 5.1 V.
1.25 A @ 24 V.
Isolation Voltage: 250 V continuous.
Max Inrush Current: 30 A.
Wire Size: 2.5 mm² (14 AWG) copper, rated at 90 °C (194 °F).
Environmental Ratings:
Operating Temperature: –25 °C to +70 °C (–13 °F to +158 °F).
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Conformal Coating: XT-rated for corrosion resistance.
Hazardous Location Certification: ATEX, IECEx, UL (Zone 2 / Class I Div 2).
Physical Characteristics:
Mounting Location: Left side of ControlLogix chassis.
Dimensions: 5.51 × 3.07 × 5.71 in (140 × 78 × 145 mm).
Weight: ~1.7 lbs (0.77 kg).
Functional Highlights:
Powers ControlLogix modules via chassis backplane.
Supports redundant power configurations with optional adapters.
Designed for harsh industrial environments including outdoor and high-vibration areas.
Compatible with ControlLogix-XT™ Series B chassis.
