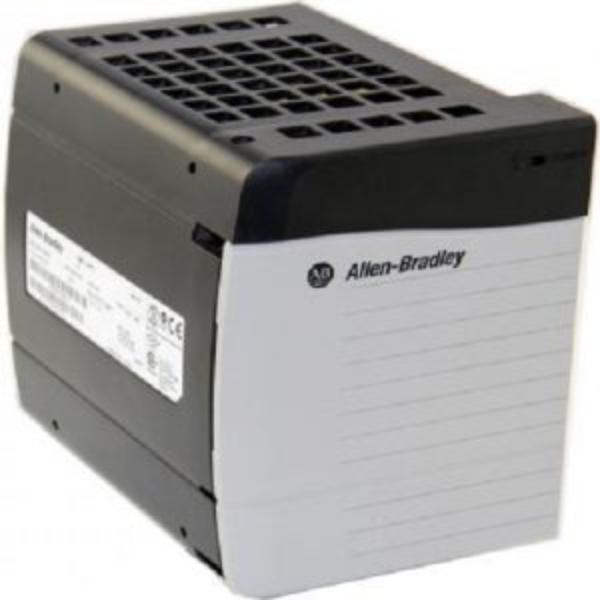

ControlLogix AC Power Supply
SKU: 1756-PA50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PA50 is a common AC power supply module for the ControlLogix chassis that converts incoming 120/240V AC power to regulated DC power for ControlLogix system components.
It fits directly into the chassis's leftmost slot and delivers consistent power to modules such as controllers, I/O, and communication interfaces.
This device is suited for industrial environments with reliable AC power and is widely used in both standalone and distributed ControlLogix systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Ratings:
Input Voltage Range: 85–265V AC.
Input Frequency: 47–63 Hz.
Inrush Current: < 20 A.
Output Power:
5.1V DC @ 10 A.
24V DC @ 2.8 A.
Power Supply Type: Non-redundant (standard).
Hold-Up Time: ≥ 10 ms at full load.
Efficiency: > 70% typical.
Mechanical:
Mounting: Leftmost slot of ControlLogix chassis.
Module Width: Single slot.
Cooling: Natural convection (no fan).
Status Indicators:
Power OK LED.
Fault LED.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
