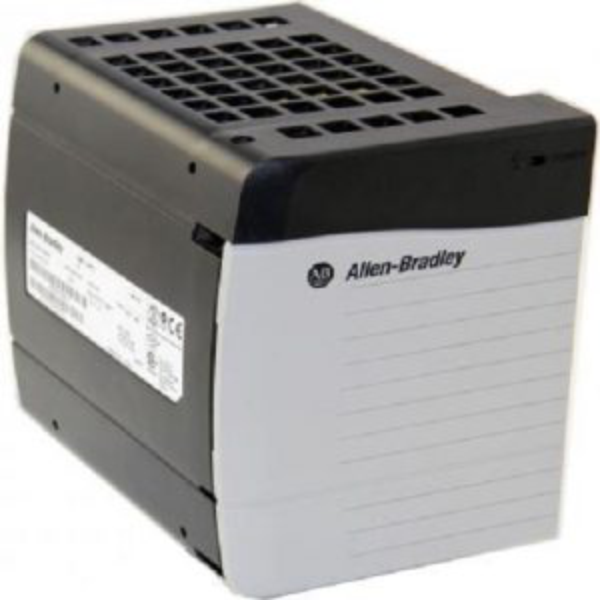

ControlLogix AC Power Supply
SKU: 1756-PA75
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PA75 is a high-capacity AC power supply module for the ControlLogix chassis, which converts 120/240V AC input into regulated DC power for ControlLogix system components.
It generates greater output power than the regular 1756-PA50, making it appropriate for bigger systems with higher module counts or power demands.
This module is installed in the chassis's leftmost slot and provides power to all modules within it.
It's perfect for industrial automation environments that require stable and dependable power delivery.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Ratings:
Input Voltage Range: 85–265V AC.
Input Frequency: 47–63 Hz.
Inrush Current: < 20 A.
Output Power:
5.1V DC @ 13 A.
24V DC @ 3.0 A.
Power Supply Type: Non-redundant (standard).
Hold-Up Time: ≥ 10 ms at full load.
Efficiency: > 70% typical.
Mechanical:
Mounting Location: Leftmost slot in ControlLogix chassis.
Module Width: Single slot.
Cooling Method: Natural convection (no fan).
Status Indicators:
Power OK LED.
Fault LED.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
