ControlLogix Power Supply Bundle
SKU: 1756-PAR2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

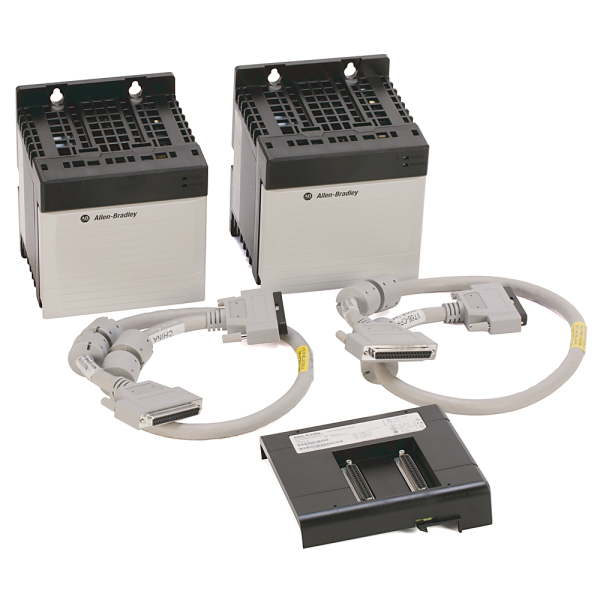

The 1756-PAR2 is a pre-packaged power supply solution that provides redundant power to ControlLogix® systems.
It comprises two high-performance AC power supplies, redundant power connections, and a chassis adaptor, ensuring continuous operation for important industrial applications.
This bundle is appropriate for environments that require system uptime, such as manufacturing, energy, and process control.
It prevents power outages and improves overall system reliability by automatically switching between power sources.
Redundant Power Supply Configuration Provides automatic switching between two AC power sources to ensure continuous operation.
Dual 1756-PA75R power supplies. Each device provides up to 75W of regulated DC power for the ControlLogix chassis.
Redundant Power Cables (1756-CPR 2) Includes two 0.91-meter (3-foot) cables for connecting power supply to the chassis adapter.
Chassis Adapter Module (1756-PSCA2) consolidates power input and controls redundancy logic within the ControlLogix chassis.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Voltage Range: 85–264 VAC.
Frequency: 47–63 Hz.
Output Power: Up to 75 W.
Output Voltages & Currents:
1.2V DC @ 1.5 A.
3.3V DC @ 4 A.
5V DC @ 13 A.
24V DC @ 2.8 A.
Isolation Voltage: 250V continuous, tested at 3250V DC for 60 seconds.
Max Inrush Current: 20 A.
Hold-Up Time: 2 cycles @ 60 Hz or 50 Hz.
Annunciator Power: 240V AC/DC, 50 mA resistive only.
Mechanical & Environmental:
Mounting: DIN rail or ControlLogix chassis.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Compliance: Built for industrial environments; UL, CE certified.
