85-265VAC REDUNDANT POWER SUPPLY ASSEMBL
SKU: 1756-PAR2K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

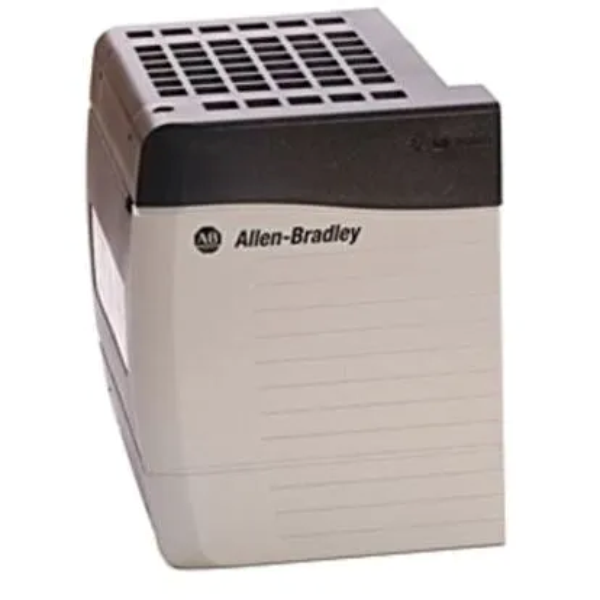

The 1756-PAR2K is a complete AC redundant power supply assembly for the ControlLogix platform, designed to operate continuously in mission-critical situations.
It accepts a wide input voltage range of 85-265V AC, making it compliant with international power standards.
This assembly contains everything required for a completely redundant configuration.
Two power supply (1756-PA75R), one primary and one backup.
Two 1756-CPR2 interconnection wires.
A 1756-PSCA2 chassis adapter.
In the event of a failure, the system automatically and seamlessly switches between power suppliers, considerably increasing uptime and lowering the risk of costly downtime.
It's perfect for applications requiring continuous control, such as manufacturing, energy, and infrastructure.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Voltage Range: 85–265V AC.
Frequency: 47–63 Hz.
Output Power: 75 W per supply.
Backplane Current Capacity:
5.1V DC: up to 13 A.
3.3V DC: up to 4 A.
24V DC: up to 2.8 A.
Assembly Components:
2 × 1756-PA75R AC Power Supplies.
2 × 1756-CPR2 Interconnect Cables.
1 × 1756-PSCA2 Chassis Adapter.
Features:
Hot-swappable modules.
Solid-state relay output for fault annunciation.
LED status indicators.
Automatic failover and load sharing.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
