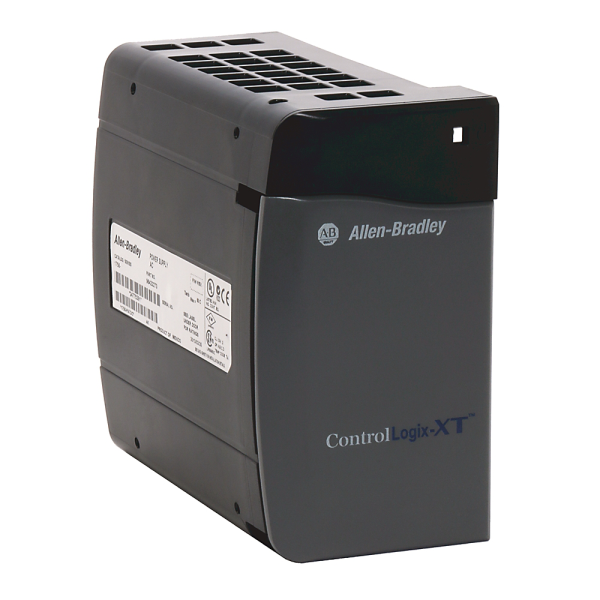

ControlLogix DC XT Power Supply
SKU: 1756-PB30XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PB30XT is a 30W DC power supply designed for use in high temperature conditions.
As a member of the ControlLogix-XT® family, it is designed to survive tough industrial conditions such as high heat, cold, humidity, and corrosive environments.
It fits into the left-most slot of a ControlLogix-XT chassis and provides regulated power to the backplane for system modules.
Designed to withstand tough industrial settings.
Supports hot switching during maintenance.
Provides regulated DC power to ControlLogix-XT modules.
Conformal coating designed to resist corrosion.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Voltage Range: 18–32 V DC.
Nominal Input Voltage: 24 V DC.
Max Input Power: 50 W.
Max Output Power: 30 W.
Output Current Ratings:
1.5 A @ 1.2 V DC.
4 A @ 3.3 V DC.
8 A @ 5.1 V DC.
1.75 A @ 24 V DC.
Isolation Voltage: 250V continuous.
Inrush Current: 20 A max.
Environmental:
Operating Temperature: –25°C to +70°C (–13°F to +158°F).
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95% non-condensing.
XT Rating: Yes — designed for extended temperature and corrosive environments.
Physical & Mounting:
Mounting Location: Left-most slot of ControlLogix-XT chassis.
Compatible Chassis Models:
1756-A4LXT/B.
1756-A5XT/B.
1756-A7LXT/B.
1756-A7XT/B.
1756-A10XT/C.
Dimensions: 5.51 × 4.41 × 5.71 in (14.0 × 11.2 × 14.5 cm).
Weight: Approx. 0.95 kg (2.10 lbs).
Wire Size: 14 AWG copper, rated for 90°C (194°F) or higher.
