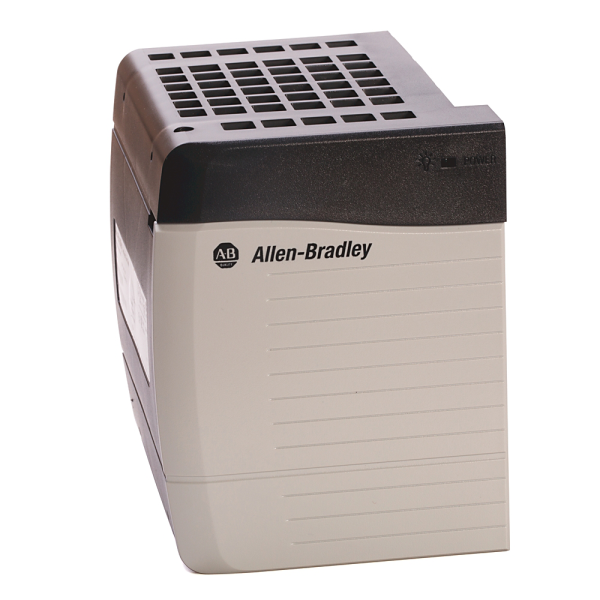

ControlLogix 24V DC Power Supply
SKU: 1756-PB72
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PB72 is a standard 24V DC power supply that provides regulated power to the ControlLogix chassis backplane.
It's perfect for industrial settings where DC power is preferred or required, such as battery-backed systems or solar-powered setups.
Provides regulated DC power to ControlLogix modules.
Supports hot swapping for greater maintenance flexibility.
Open-style modules require enclosure.
Power health is monitored via an LED status indicator.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Voltage Range: 19–32 V DC.
Nominal Input Voltage: 24 V DC.
Maximum Input Power: 95 W.
Maximum Output Power: 75 W.
Output Current Ratings:
1.2V DC @ 1.5 A.
3.3V DC @ 4 A.
5.1V DC @ 10 A.
24V DC @ 2.8 A2.
Environmental:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Isolation Voltage: 250V continuous, tested at 3500V DC for 60 seconds.
Physical & Mounting:
Mounting Location: Left-most slot of ControlLogix chassis.
Compatible Chassis: 1756-A4, A7, A10, A13, A17 (Series A, B, C).
Dimensions: 5.51 × 4.41 × 5.71 in (14.0 × 11.2 × 14.5 cm).
Weight: Approx. 0.95 kg (2.10 lbs).
Wire Size: 14 AWG copper, rated at 90°C or higher.
