ControlLogix DC Power Supply
SKU: 1756-PB75K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

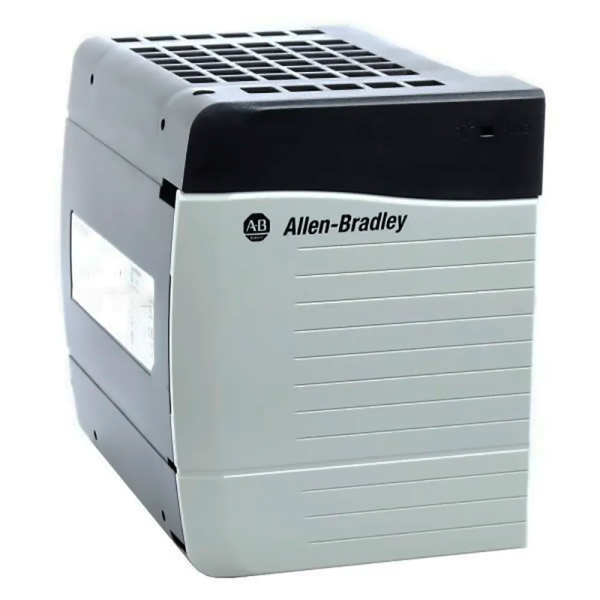

The 1756-PB75K is a complete 75-watt DC power supply kit for the ControlLogix platform, suited for industrial automation systems that require a 24V DC input.
This kit comprises the 1756-PB75 power supply module, a 1756-CPR2 power cable, and a 1756-PSCA2 chassis adaptor, which are all required for installation.
Delivering regulated backplane power to support ControlLogix controllers, I/O modules, and communication cards, the 1756-PB75K is designed for high-performance applications.
It's ideal for areas with centralized DC distribution or battery-powered systems.
While not redundant, it provides consistent power delivery and strong environmental resistance for demanding industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage Range: 18–32V DC.
Nominal Input Voltage: 24V DC.
Output Power: Up to 75 W.
Backplane Current Capacity:
5.1V DC: up to 13 A.
3.3V DC: up to 4 A.
24V DC: up to 2.8 A.
Mechanical & Mounting:
Kit Includes:
1756-PB75 DC Power Supply.
1756-CPR2 Power Cable.
1756-PSCA2 Chassis Adapter.
Mounting Location: External to ControlLogix chassis via adapter.
Hot-Swappable: No.
Status Indicators: LED for power and fault.
Reverse Polarity Protection: Not included—verify wiring before installation.
Overcurrent Protection: Use time-delay fuses on all ungrounded conductors.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
