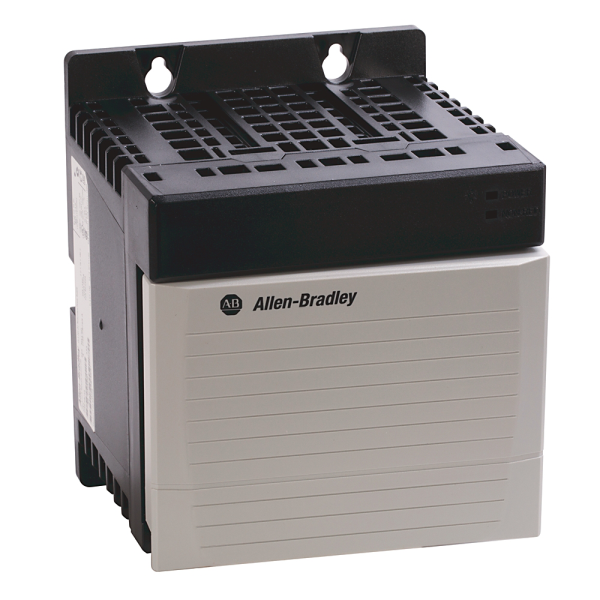

ControlLogix Power Supply Bundle
SKU: 1756-PBR2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PBR2 is a DC redundant power supply bundle for the ControlLogix platform, intended to enable high-availability applications that require continuous power.
This bundle contains all of the components required to set up a redundant DC power setup in a ControlLogix chassis.
It's perfect for businesses like manufacturing, energy, and infrastructure that require minimal downtime and high system reliability.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Ratings:
Input Voltage Range: 19.2–31.2V DC.
Nominal Input Voltage: 24V DC.
Output Power (per module):
5.1V DC @ 13 A.
24V DC @ 3.0 A.
Redundancy Support: Yes (automatic switchover between supplies).
Hold-Up Time: ≥ 10 ms at full load.
Efficiency: > 70% typical.
Mechanical:
Mounting Location: Leftmost slot in ControlLogix chassis.
Cooling Method: Natural convection.
Status Indicators:
Power OK LED.
Fault LED.
Redundancy status LED.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
