ControlLogix Power Supply Bundle

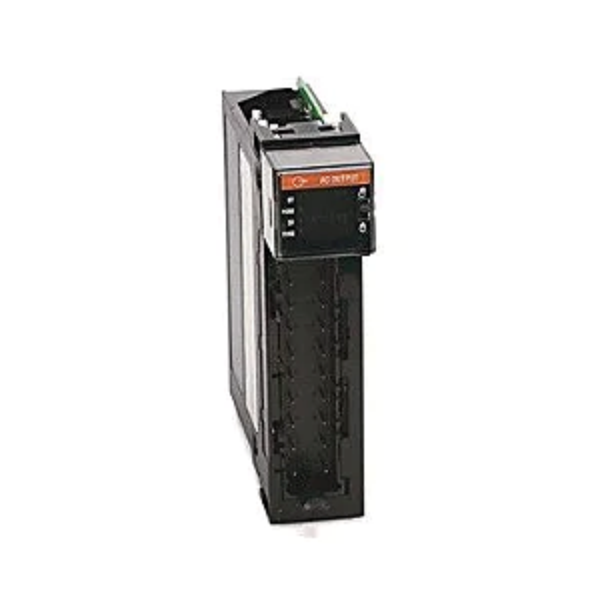

SKU: 1756-PBR2K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PBR2K is a DC redundant power supply kit for the ControlLogix platform that provides high-availability power in mission-critical environments.
This kit facilitates the implementation of a redundant DC power setup by combining all required components into a single box.
It is suited for industrial areas requiring high system uptime, such as manufacturing, energy, and infrastructure.
The kit allows a smooth power transition between suppliers, avoiding downtime due to a power breakdown.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Ratings:
Input Voltage Range: 19.2–31.2V DC.
Nominal Input Voltage: 24V DC.
Output Power (per module):
5.1V DC @ 13 A.
24V DC @ 3.0 A.
Redundancy Support: Yes (automatic switchover between supplies).
Hold-Up Time: ≥ 10 ms at full load.
Efficiency: > 70% typical.
Mechanical:
Mounting Location: Leftmost slot in ControlLogix chassis.
Cooling Method: Natural convection.
Status Indicators:
Power OK LED.
Fault LED.
Redundancy status LED.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
