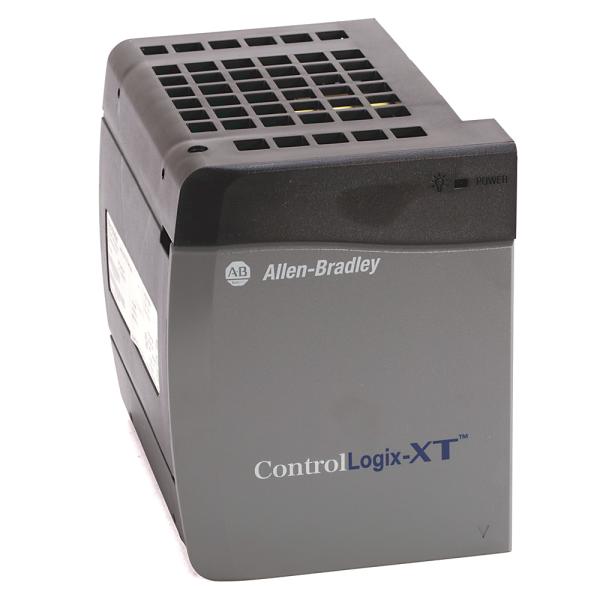

Extended Temp DC Redundant Supply
SKU: 1756-PBXTR
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PBXTR is a ControlLogix-compatible DC redundant power supply module designed for extended temperature settings.
It delivers regulated DC power to ControlLogix chassis components and allows redundant power configurations, ensuring high availability in severe industrial environments.
This module is suited for use in outdoor installations, distant facilities, and harsh settings where typical temperature ranges are inadequate.
It operates in tandem with another 1756-PBXTR to provide a smooth power switchover without affecting system performance.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Ratings:
Input Voltage Range: 19.2–31.2V DC.
Nominal Input Voltage: 24V DC.
Output Power:
5.1V DC @ 13 A.
24V DC @ 3.0 A.
Redundancy Support: Yes (requires two 1756-PBXTR units).
Hold-Up Time: ≥ 10 ms at full load.
Efficiency: > 70% typical.
Extended Environmental Ratings:
Operating Temperature: –25°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Mechanical & Features:
Mounting Location: Leftmost slot in ControlLogix chassis.
Cooling Method: Natural convection.
Status Indicators:
Power OK LED.
Fault LED.
Redundancy status LED.
Hot-Swappable: Yes (with proper precautions).
Compatible Accessories:
1756-CPR2 cable.
1756-PSCA2 chassis adapter.
