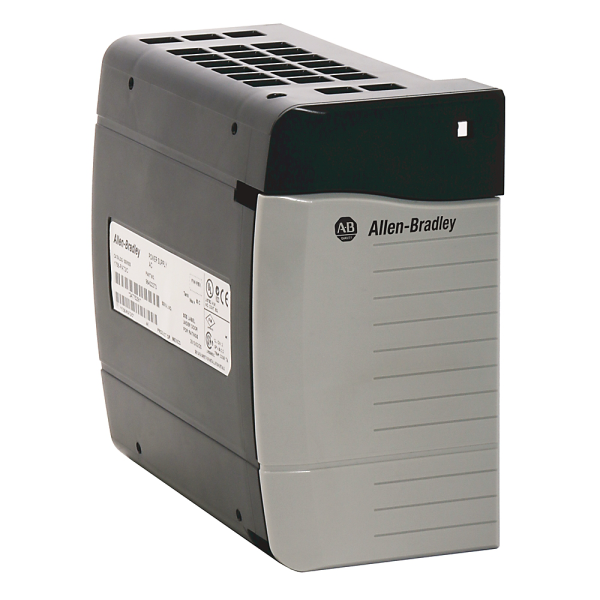

ControlLogix 48V DC Power Supply
SKU: 1756-PC75
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PC75 is a high-capacity DC power supply module for the ControlLogix chassis that is specifically designed to run on 48V DC input.
It converts incoming 48V DC power to the regulated voltages needed by ControlLogix system components like controllers, I/O modules, and communication interfaces.
This module is suited for industrial applications requiring 48V DC power, such as communications, transportation, and solar-powered systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Ratings:
Input Voltage Range: 36–53V DC.
Nominal Input Voltage: 48V DC.
Inrush Current: < 20 A.
Output Power:
5.1V DC @ 13 A.
24V DC @ 3.0 A.
Hold-Up Time: ≥ 10 ms at full load.
Efficiency: > 70% typical.
Mechanical:
Mounting Location: Leftmost slot in ControlLogix chassis.
Module Width: Single slot.
Cooling Method: Natural convection (no fan).
Status Indicators:
Power OK LED.
Fault LED.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
