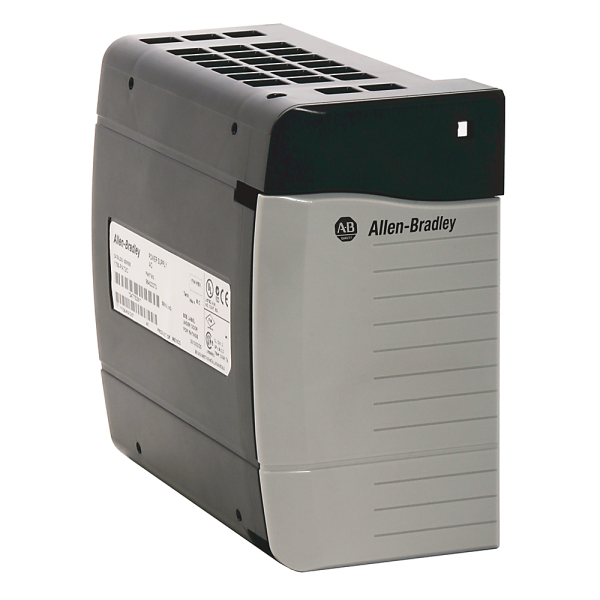

ControlLogix 125V DC Power Supply
SKU: 1756-PH75
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PH75 is a high-voltage DC power supply module for the ControlLogix chassis that converts 125V DC input to the regulated voltages needed by ControlLogix system components.
It's suited for industries that need 125V DC electricity, such as power generating, utilities, and transportation.
This module supplies dependable power for controllers, I/O modules, and communication interfaces and fits into the ControlLogix chassis's leftmost slot.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Ratings:
Input Voltage Range: 100–150V DC.
Nominal Input Voltage: 125V DC.
Inrush Current: < 20 A.
Output Power:
5.1V DC @ 13 A.
24V DC @ 3.0 A.
Hold-Up Time: ≥ 10 ms at full load.
Efficiency: > 70% typical.
Mechanical:
Mounting Location: Leftmost slot in ControlLogix chassis.
Module Width: Single slot.
Cooling Method: Natural convection (no fan).
Status Indicators:
Power OK LED.
Fault LED.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
