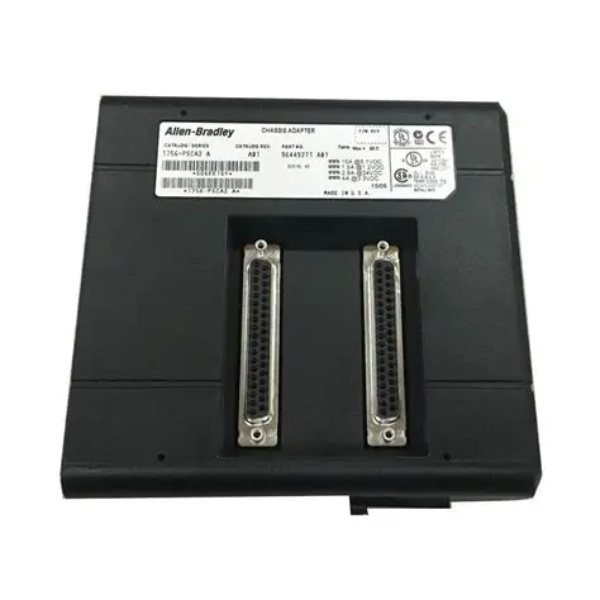

ControlLogix Redundant P S Adaptor
SKU: 1756-PSCA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PSCA2 is a power supply chassis adapter for the ControlLogix platform's redundant power setups.
It allows two redundant power sources to be connected to a single ControlLogix chassis, guaranteeing that power is delivered continuously even if one supply fails.
This adapter is required for high-availability systems where downtime is undesirable, such as important manufacturing, energy, or infrastructure applications.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Function: Connects two redundant power supplies to one ControlLogix chassis.
Compatible Power Supplies:
1756-PA75R (AC redundant).
1756-PB75R (DC redundant).
1756-PC75R (48V DC redundant).
1756-PBXTR (extended temp DC redundant).
Required Cable: 1756-CPR2 (redundant power cable).
Mounting Location: Leftmost slot of ControlLogix chassis.
Redundancy Type: Active/passive switchover.
Hot-Swappable: Yes (when properly configured).
Status Indicators: None (status is shown on power modules).
Dimensions: Matches standard ControlLogix module footprint.
Weight: Lightweight, passive component.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
