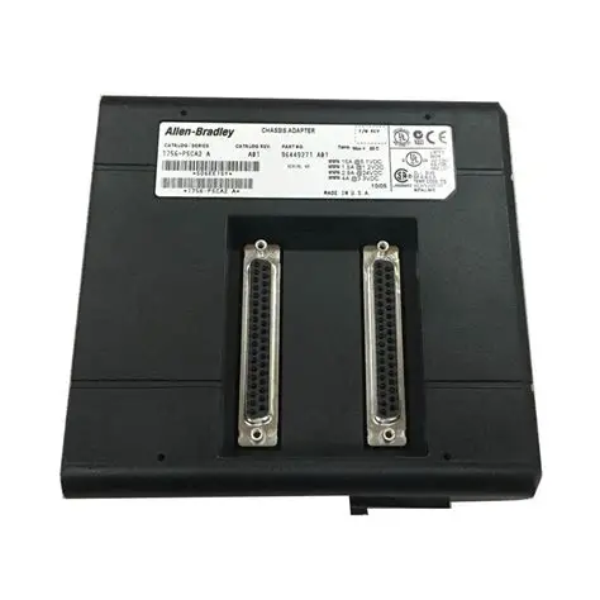

ControlLogix Adaptor
SKU: 1756-PSCA2K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PSCA2K is a redundant power supply adapter kit for the ControlLogix platform that simplifies the building of a redundant power system.
It comprises all of the components required to connect two redundant power sources to a single ControlLogix chassis, assuring uninterrupted operation in the event that one supply fails.
This kit is suited for high-availability applications in industries such as manufacturing, energy, and utilities, where system reliability is crucial.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Function: Enables redundant power supply connection to ControlLogix chassis.
Compatible Power Supplies:
1756-PA75R (AC redundant).
1756-PB75R (DC redundant).
1756-PC75R (48V DC redundant).
1756-PBXTR (extended temp DC redundant).
Mounting Location: Leftmost slot in ControlLogix chassis.
Redundancy Type: Active/passive switchover.
Hot-Swappable: Yes (when properly configured).
Status Indicators: None (status shown on power modules).
Cooling Method: Passive (no fan).
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
