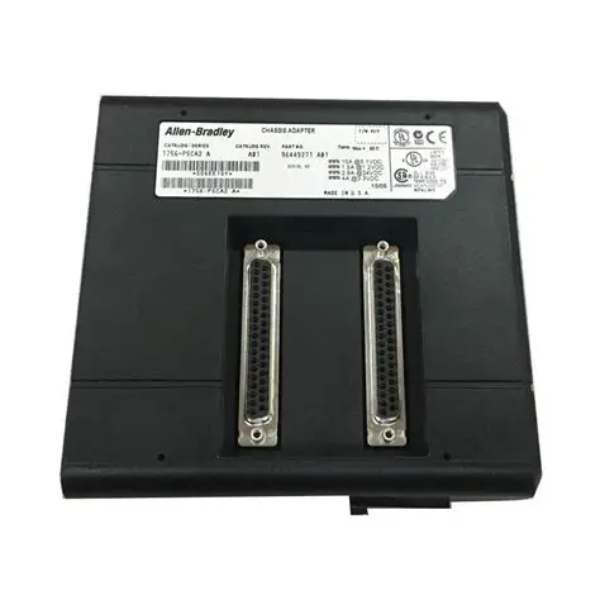

Extended Temp Redundant Supply Adapter
SKU: 1756-PSCA2XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-PSCA2XT is a redundant power supply adapter for the ControlLogix platform that can withstand high temperatures.
It allows the connecting of two redundant power supply to a single chassis, ensuring continuous operation in severe industrial environments.
This adaptor is required for implementing high-availability ControlLogix systems in outdoor, remote, or harsh situations when typical temperature ranges are insufficient.
Buy currently uses Select Automation shop pricing and checkout.
Functionality:
Purpose: Connects two redundant power supplies to one ControlLogix chassis.
Redundancy Type: Active/passive switchover.
Compatible Power Supplies:
1756-PBXTR (Extended Temp DC Redundant).
Other XT-rated redundant DC supplies.
Required Cable: 1756-CPR2 (Redundant Power Cable).
Mounting Location: Leftmost slot in ControlLogix chassis.
Hot-Swappable: Yes (when properly configured).
Status Indicators: None (status shown on power modules).
Extended Environmental Ratings:
Operating Temperature: –25°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Mechanical:
Form Factor: Matches standard ControlLogix module footprint.
Cooling Method: Passive (no fan).
Weight: Lightweight, passive component.
