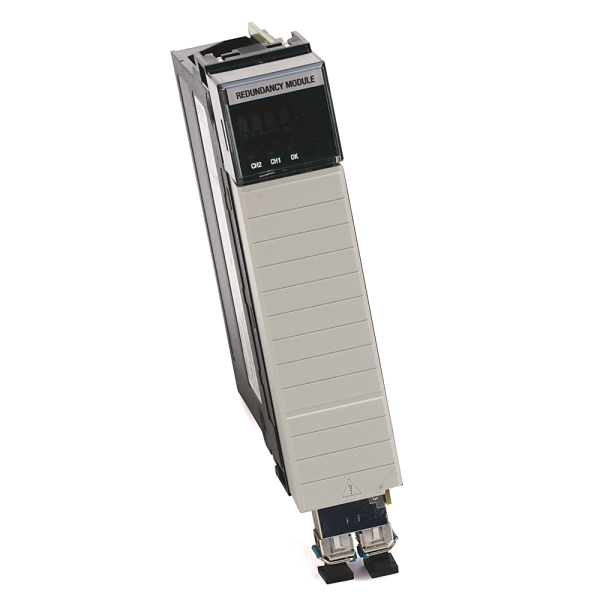

ControlLogix Redundancy Enhanced Module
SKU: 1756-RM2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-RM2 is an upgraded redundancy module for ControlLogix® systems that provides high-speed controller redundancy with low switchover time.
It allows two ControlLogix controllers, often from the 5560 or 5570 families, to work together in a primary/secondary arrangement, ensuring continuous control in the event of a defect or failure.
This module employs redundant fiber-optic communication connections to synchronize data between the two controllers at speeds of up to 1000 Mbps, with no single point of failure.
It provides quick switchover times, frequently as short as 20 milliseconds, making it appropriate for mission-critical applications in industries such as energy, manufacturing, and transportation.
The 1756-RM2 works with ControlLogix-XT chassis and can be inserted in any slot.
It draws 1.16 amps at 5.1 volts DC, consumes 6 watts, and can accommodate up to seven upgraded ControlNet and EtherNet/IP modules for redundancy.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Performance:
Redundancy Type: Controller-level redundancy.
Switchover Time: As fast as 20 milliseconds under optimal conditions.
Communication Speed: Up to 1000 Mbps via fibre-optic links.
Backplane Current Draw: Approx. 1.16 A @ 5.1V DC.
Power Consumption: ~6 Watts.
Functional Features:
Supported Controllers: ControlLogix 5560 and 5570 series.
Redundant Fiber Ports: Dual-channel communication with no single point of failure.
Slot Requirement: Occupies 1 slot in any ControlLogix chassis.
Configuration Tool: RMCT (Redundancy Module Configuration Tool) for setup and diagnostics.
Communication Modules Supported: Up to 7 enhanced ControlNet and EtherNet/IP modules.
Compatible Fiber Cables:
1756-RMC1 (1 meter).
1756-RMC3 (3 meters).
1756-RMC10 (10 meters).
Environmental & Compliance:
Certifications: UL, CE, RoHS, Build America Buy America compliant.
Operating Conditions: Industrial-grade temperature, shock, and vibration ratings.
