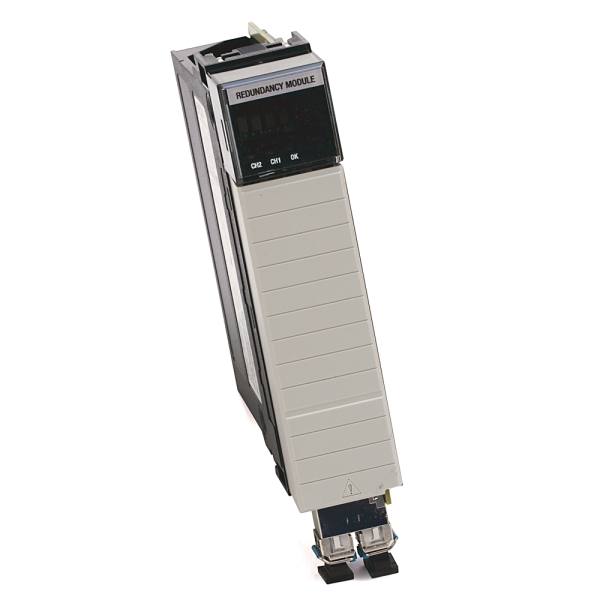

CLX Redundancy Module
SKU: 1756-RM2K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-RM2K is a redundancy module for ControlLogix systems that provides controller-level fault tolerance and quick switchover times.
It is functionally comparable to the 1756-RM2, but it has conformal coating (represented by the "K") that protects internal circuitry from moisture, dust, and corrosive gasses, making it suited for tough industrial situations such as chemical plants, offshore platforms, and mining activities.
This module provides high availability by synchronizing two ControlLogix controllers in a primary/secondary configuration via fiber-optic connection.
It only functions with compatible enhanced communication modules, such as the 1756-EN2TR, and not with regular ones, such as the 1756-EN2T2, because it offers increased redundancy.
Controller models supported include the ControlLogix 5560 and 5570 series.
Fiber Cable Options:
1756-RMC1 (1 m).
1756-RMC3 (3 m).
1756-RMC10 (10 m).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: ControlLogix Enhanced Redundancy Module (Conformal Coated).
Redundancy Function: Synchronizes two controllers (Primary/Secondary) for high availability.
Switchover Time: Typically, less than 20 milliseconds.
Backplane Current Draw: 1.16 A @ 5.1 V DC.
Power Consumption: Approximately 6 Watts.
Communication Link: Fiber-optic cable (requires 1756-RMC1, RMC3, or RMC10).
Supported Controllers: ControlLogix 5560 and 5570 series.
Compatible Modules: Enhanced EtherNet/IP (e.g., 1756-EN2TR), ControlNet, XT-rated modules.
Conformal Coating: Yes — protects against moisture, dust, and corrosive gases.
Operating Temperature: -25 °C to +70 °C (XT spec).
Storage Temperature: -40 °C to +85 °C.
Humidity Range: 5% to 95% non-condensing.
Shock Resistance: 30 g operational, 50 g non-operational.
Software Support: Studio 5000 Logix Designer, RMCT (Redundancy Module Configuration Tool).
Certifications: UL, CE, RoHS, ATEX (when used in certified systems).
