ControlLogix 10 m RM Fiber Optic Cable
SKU: 1756-RMC10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

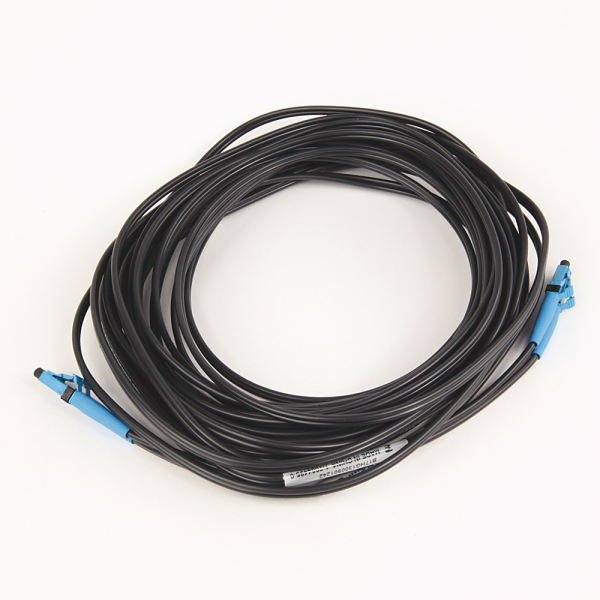

The 1756-RMC10 is a 10-meter fibre-optic communication cable intended for ControlLogix redundancy systems.
It links redundancy modules to two ControlLogix chassis, allowing for high-speed synchronization between primary and secondary controllers.
This connection is crucial in constructing a dependable redundant programmable controller system, resulting in reduced switchover time and failure tolerance.
It is the longest cable offered in the ControlLogix redundancy series, allowing for larger cabinet design or spaced-out installations.
It works with modules such as 1756-RM2, 1756-RM2K, and 1756-RM2XT to support systems in both conventional and harsh settings.
Buy currently uses Select Automation shop pricing and checkout.
Physical & Electrical Specifications:
Cable Type: Fiber optic communication cable.
Length: 10 meters (32.81 feet).
Transmission Speed: Supports up to 1000 Mbps.
Wavelength: 1300 nm.
Channels: Single-channel communication.
Wire Size: 20 AWG.
Dimensions: Approx. 5.51 × 4.41 × 5.71 inches.
Enclosure: None (bare cable for internal cabinet use).
Compatibility & Use:
Compatible Modules:
1756-RM.
1756-RM2.
1756-RM2K.
1756-RM2XT.
Function: Connects redundancy modules across two ControlLogix chassis.
Purpose: Enables high-speed synchronization for controller redundancy.
Environmental Ratings:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
