ControlLogix 3 m RM Fiber Optic Cable
SKU: 1756-RMC3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

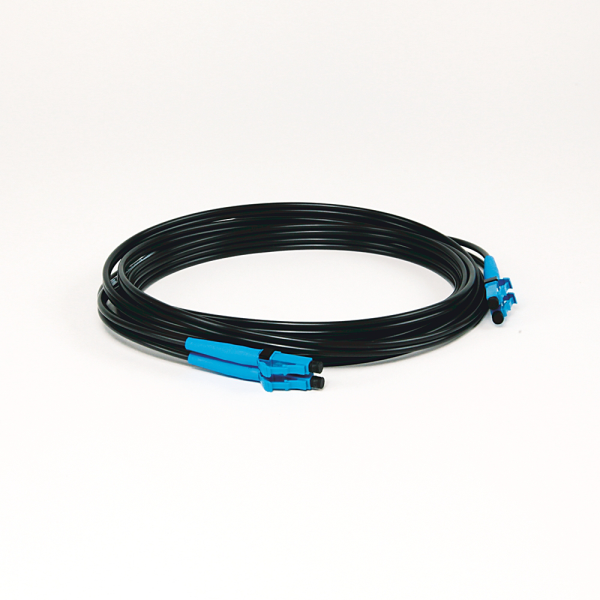

The 1756-RMC3 is a 3-meter fiber optic cable developed for Rockwell Automation's ControlLogix® redundancy systems.
It acts as a crucial link between redundancy modules, allowing for high-speed data interchange and synchronization between the primary and secondary controllers in a redundant arrangement.
Redundancy Communication: Enables rapid and reliable communication between two ControlLogix redundancy modules.
System Integrity: Ensures that the controller switches over seamlessly in the event of a breakdown, reducing downtime.
Industrial Grade: Designed for demanding environments such as manufacturing and process control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Fiber Optic Redundancy Cable.
Catalogue Number: 1756-RMC3.
Cable Length: 3 meters (approx. 9.84 feet).
Connector Type: LC-style fibre connectors.
Fiber Type: Multimode optical fibre.
Wavelength: 1300 nm.
Transmission Speed: Up to 1000 Mbps.
Application: Connects ControlLogix redundancy modules for high-speed synchronization.
Compatible Modules:
1756-RM.
1756-RM2.
1756-RM2K (conformal coated).
1756-RM2XT (extreme temperature version).
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: -40°C to 85°C (-40°F to 185°F).
Humidity Range: 5% to 95% non-condensing.
Installation Environment: Indoor control cabinet use.
Enclosure Rating: None (open cable, not sealed).
