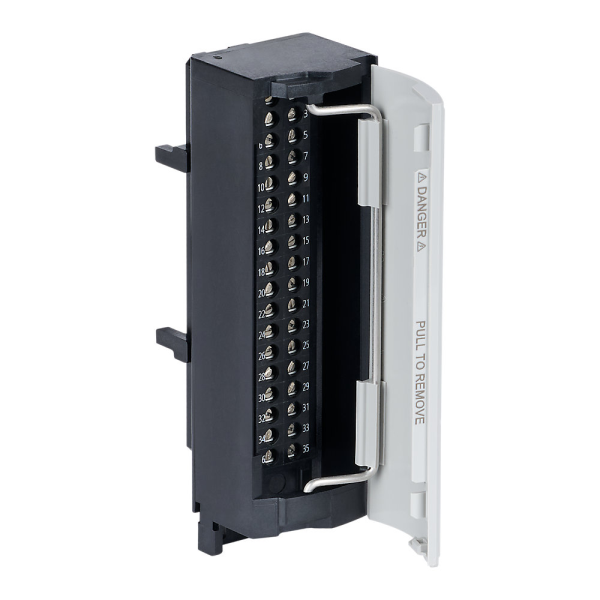

ControlLogix 36 Pin Screw Terminal Block
SKU: 1756-TBCH
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-TBCH is a Removable Terminal Block (RTB) specifically intended for ControlLogix I/O modules.
It offers a secure and modular interface for field wiring, enabling for simple installation, maintenance, and replacement of I/O modules without disrupting wire.
Modular design allows for quick I/O module replacement.
Secure screw-clamp connections ensure reliable field wiring.
Allows for the hot swapping of I/O modules.
Compatible with the majority of ControlLogix digital and analogue I/O modules.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Wiring:
Connection Type: Screw-clamp (cage clamp).
Pin Count: 36 pins.
Wire Type: Solid or stranded copper.
Single Wire Size: 0.33 to 2.1 mm² (22–14 AWG).
Double Wire Size: 0.33 to 1.3 mm² (22–16 AWG).
Max Wire Insulation: 1.2 mm (3/64 in.), rated for 90°C (194°F) or higher.
Screw Torque: 0.5 Nm (4.4 lb-in).
Recommended Tool: 3.2 mm (1/8 in.) flat-blade screwdriver.
Environmental:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Enclosure: None (open-style terminal block).
Physical Details:
Dimensions: 5.51 × 4.41 × 5.71 in (14.0 × 11.2 × 14.5 cm).
Weight: Approx. 0.1 kg (0.3 lbs).
Mounting: Plugs directly into the front of ControlLogix I/O modules.
Backplane Current Draw:
1,200 mA @ 5V.
2.5 mA @ 24V.
Power Dissipation: Max 6.19 W.
