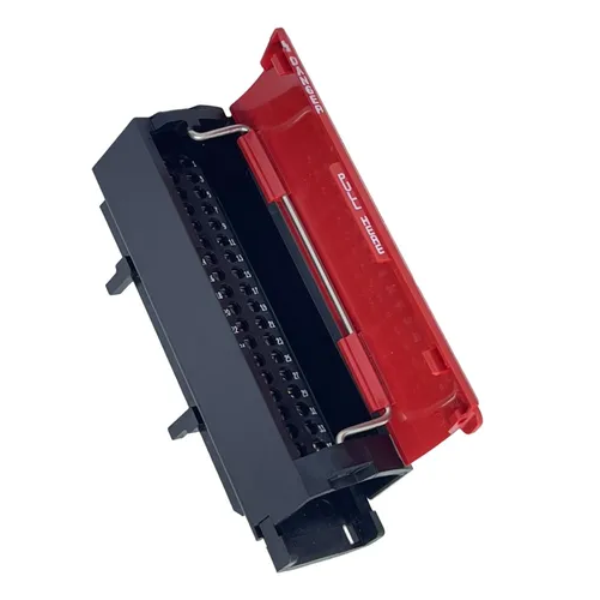

ControlLogix 36 Pin Screw TRM Block
SKU: 1756-TBCHS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-TBCHS is a 36-pin screw-type removable terminal block (RTB) that works with ControlLogix I/O modules.
It serves as the physical connecting point between field wiring and the I/O module, allowing for simple installation, maintenance, and repair without disturbing wiring.
This RTB is suited for applications that require secure, tool-tightened connections and is compatible with ControlLogix's digital and analogue I/O modules.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Type: Removable Terminal Block (RTB).
Connection Style: Screw clamp.
Number of Pins: 36.
Wire Size Range:
Solid: 22–14 AWG.
Stranded: 22–16 AWG.
Torque Rating: 0.5 Nm (4.4 lb-in).
Mounting: Directly attaches to the front of compatible ControlLogix I/O modules.
Labelling: Terminal identification markings included.
Colour: Typically, black or grey (varies by batch).
Hot-Swappable: Yes (when used with compatible modules).
Compatible Modules:
The 1756-TBCHS is commonly used with:
Digital I/O modules (e.g., 1756-IB16, 1756-OB16E).
Analog I/O modules (e.g., 1756-IF8, 1756-OF6CI).
Specialty modules requiring 36-pin RTB connections.
