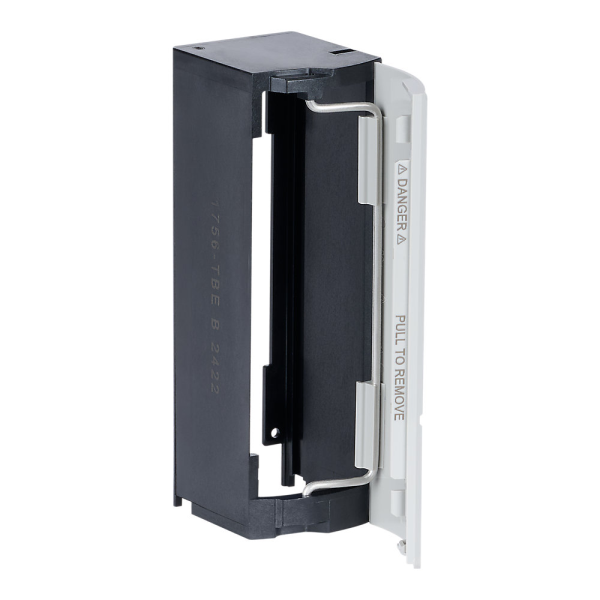

ControlLogix Deep Terminal Block Housing
SKU: 1756-TBE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-TBE ControlLogix Deep Terminal Block Housing is a specialized enclosure for storing removable terminal blocks (RTBs) used with ControlLogix I/O modules.
Its deeper profile allows for greater area for routing and securing field wiring, which is especially useful in applications that demand larger wire gauges or more intricate wiring architecture.
This housing improves wire management and protection, making it suitable for high-density industrial control panels.
It allows for hot-swapping of I/O modules and is compatible with 36-pin RTBs such the 1756-TBCH (screw clamp) and 1756-TBS6H (spring clamp).
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Type: Deep RTB housing.
Compatible RTBs:
1756-TBCH (36-pin screw clamp).
1756-TBS6H (36-pin spring clamp).
Compatible Modules: ControlLogix digital and analogue I/O modules requiring 36-pin RTBs.
Mounting: Attaches directly to the front of the I/O module.
Wire Accommodation: Supports larger wire gauges and extended bend radius.
Material: Industrial-grade thermoplastic.
Colour: Typically, black or grey.
Hot-Swappable: Yes (when used with compatible modules).
Labelling: Terminal identification markings included.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
