ControlLogix Deep Term Block Housing-Red
SKU: 1756-TBES
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

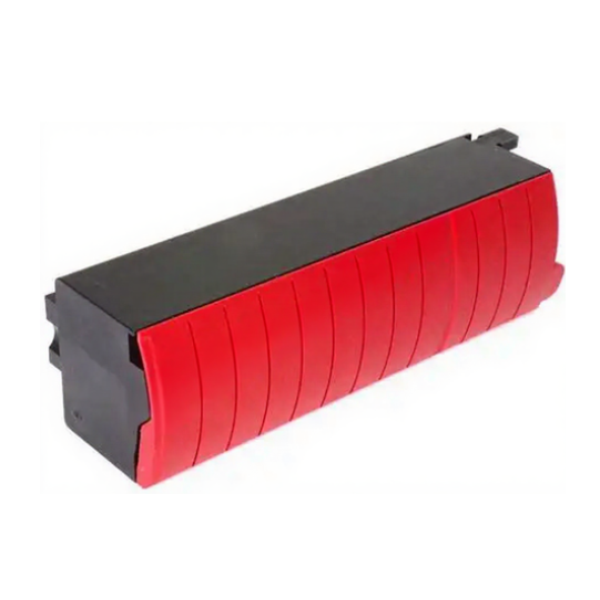

The 1756-TBES is a deep removable terminal block (RTB) enclosure for ControlLogix I/O modules, with a distinctive red hue for easy visibility and identification.
It is intended to accept 36-pin RTBs and offers additional depth for better wire routing, particularly in high-density or safety-critical applications.
The red housing is widely used to mark safety circuits, emergency systems, or high-priority I/O, allowing professionals to rapidly identify vital wiring during installation or maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Type: Deep RTB housing.
Colour: Red.
Compatible RTBs:
1756-TBCH (36-pin screw clamp).
1756-TBS6H (36-pin spring clamp).
Compatible Modules: ControlLogix digital and analogue I/O modules requiring 36-pin RTBs.
Mounting: Attaches directly to the front of the I/O module.
Wire Accommodation: Supports larger wire gauges and extended bend radius.
Material: Industrial-grade thermoplastic.
Hot-Swappable: Yes (when used with compatible modules).
Labelling: Terminal identification markings included.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
