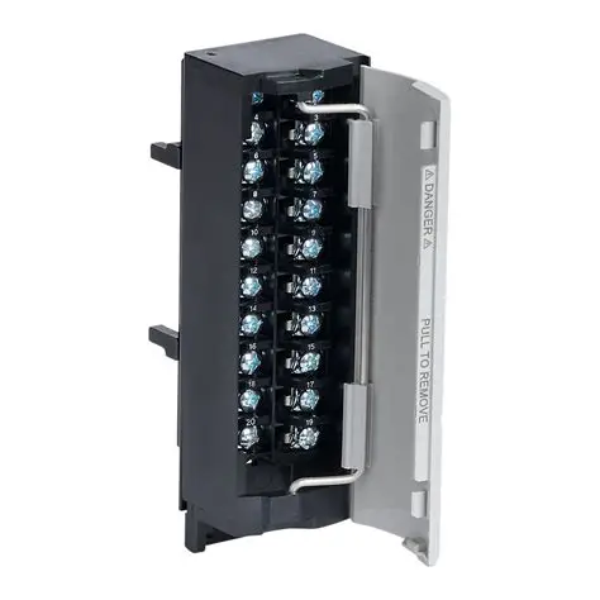

ControlLogix 20 Pin Screw Terminal Block
SKU: 1756-TBNH
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-TBNH is a 20-pin screw-type removable terminal block (RTB) that works with ControlLogix I/O modules.
By offering a safe and dependable interface between the I/O module and field wire, it makes installation, maintenance, and module replacement simple and doesn't interfere with the wiring.
This RTB is suited for applications requiring tool-tightened connections and is compatible with ControlLogix modules with a 20-pin interface.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Type: Removable Terminal Block (RTB).
Connection Style: Screw clamp.
Number of Pins: 20.
Wire Size Range:
Solid: 22–14 AWG.
Stranded: 22–16 AWG.
Torque Rating: 0.5 Nm (4.4 lb-in).
Mounting: Directly attaches to the front of compatible ControlLogix I/O modules.
Labelling: Terminal identification markings included.
Colour: Typically, black or grey.
Hot-Swappable: Yes (when used with compatible modules).
Compatible Modules:
The 1756-TBNH is commonly used with:
Specialty I/O modules.
Low-density digital or analogue modules.
Modules requiring 20-pin RTB connections.
