ControlLogix 20 Pin Spring TRM Block
SKU: 1756-TBSHS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

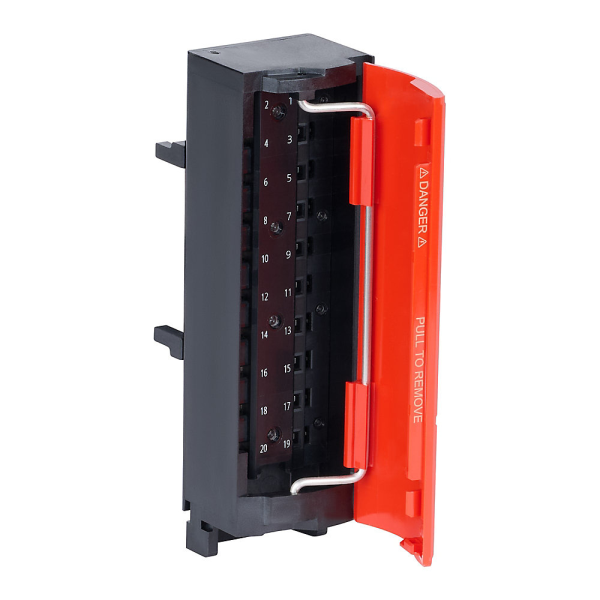

The 1756-TBSHS is a 20-pin removable terminal block that is compatible with Rockwell Automation's ControlLogix® I/O modules.
It has spring-clamp connectors, which allow for quick, tool-free wiring and are highly resistant to vibration and loosening over time.
The standard-depth casing provides compatibility with a wide variety of ControlLogix modules.
This terminal block is suited for industrial settings where dependability, quick installation, and ease of maintenance are vital.
The spring-clamp design eliminates the need for torque tools, which reduces wiring errors and increases uptime during service.
A 20-pin detachable block for ControlLogix modules.
Spring-clamp terminals provide secure, tool-free wiring.
Standard housing depth ensures broad module compatibility.
Supports wire diameters ranging from 22 to 14 AWG.
Vibration-resistant and ideal for high-stress settings.
RIUP-capable (may be removed/inserted while powered).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 1756-TBSHS.
Product Type: Removable Terminal Block (RTB).
Pin Count: 20 pins.
Termination Method: Spring-clamp (tool-free, vibration-resistant).
Housing Style: Standard-depth housing.
Wire Size Compatibility: 22 AWG to 14 AWG (solid or stranded copper).
Mounting: Direct plug-in to ControlLogix I/O modules.
Colour: Typically, red (for easy identification).
Application: Industrial automation, especially in high-vibration or fast-installation environments.
Lifecycle Status: Active product.
Manufacturer: Rockwell Automation (Allen-Bradley brand).
Product Category: Terminal Blocks.
Termination Options: Spring Clamp.
Compatible Systems: ControlLogix chassis based I/O modules.
