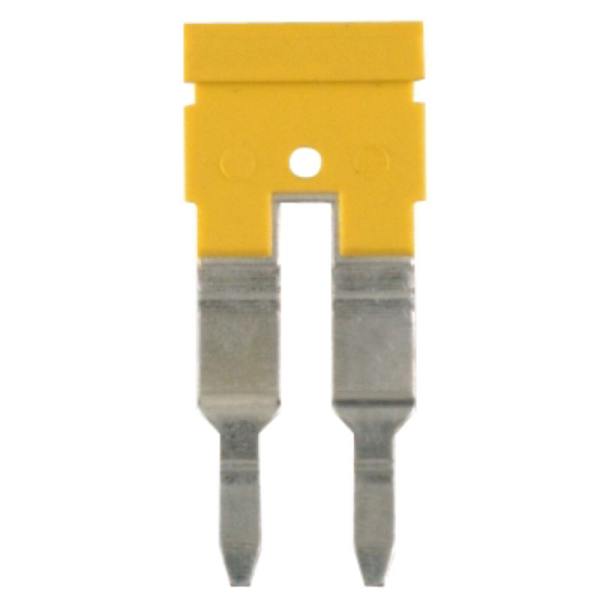

ZQV 4N/2 GE
SKU: 1758250000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
ZQV 4N/2 GE:
The plug-in cross-connections are simple to use and take little time to install.
This saves a significant amount of time during installation as compared to screwed alternatives.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 25.7 mm.
Depth (inches): 1.012 inch.
Height: 11 mm.
Height (inches): 0.433 inch.
Width: 2.8 mm.
Width (inches): 0.11 inch.
Net weight: 1.5 g.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -60.
Continuous operating temp., max.: 130.
Environmental Product Compliance:
REACH SVHC: /.
eshop_Filter_00_General:
Weidmüller class short: Cross-connector.
Weidmüller class target channel: Cross-connector (terminal).
eshop_Filter_01_01_Terminal_Block:
Colour: yellow.
Material data:
Material: Wemid.
Colour: yellow.
UL 94 flammability rating: V-0.
System specifications:
Version: For the terminals.
Additional technical data:
Explosion-tested version: Yes.
Installation advice: Direct mounting.
Type of fixing: Plugged.
Cross-connector:
Number of cross-connected terminals: 2.
Rated current, 2-pole: 32 A.
Rated current, multi-pole: 32 A.
Type: Cross-connector.
Dimensions:
Pitch in mm (P): 6.1 mm.
General:
Installation advice: Direct mounting.
Number of poles: 2.
Rating data:
Rated current: 32 A.
Important note:
Product information:
Due to stability and temperature reasons, it is only possible to break out 60% of contact elements.
The usage of cross connectors reduces the rated voltage to 400V.
The voltage reduced to 25V if cut cross connection with blank cut edges are used.
