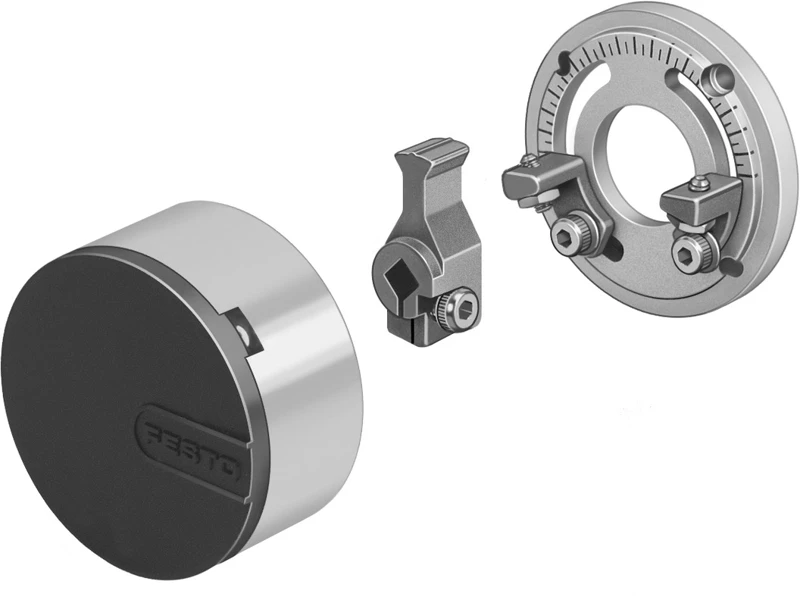

Semi-rotary drives DRVS, Accessories, KSM-6
SKU: 175833
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DRVS, double-acting
• Accessories, Stop (kit)
• Size 6
• Rotation angle adjustment range 0 deg ... 180 deg
• Swivel angle 180 deg
• Mounting position optional
• Fine adjustment -5 deg
• Design Stop lever
• Position detection Without
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature 0 °C ... 60 °C
• Product weight 30 g
• Material covering PA-reinforced
• Material stops High-alloy stainless steel
• Material housing Aluminium, Anodised
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drives DRVS, double-acting
• Modern and compact design
• Lighter than other semi-rotary drives
• Housing protected against splash water and dust
• Selected types in accordance with ATEX directive for potentially explosive atmospheres
