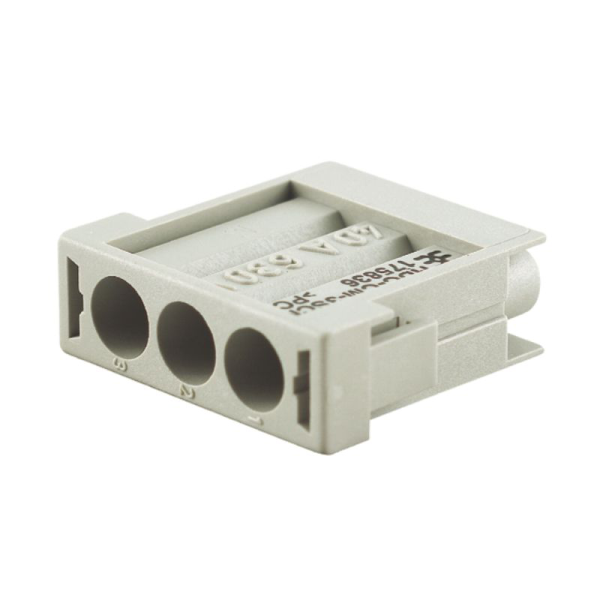

HDC CM 3 MC
SKU: 1758360000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC CM 3 MC:
The module is connected by HE crimps connections.
The crimp contact has a stainless-steel spring.
This ensures a secure snap-in contact with the module.
A customized contact removal tool is available to help you remove the contacts.
The integrated module release aid is an option for the power modules.
For modules without the included module release aid, a removal tool is offered.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 34 mm.
Depth (inches): 1.339 inch.
Height: 31.4 mm.
Height (inches): 1.236 inch.
Width: 11.4 mm.
Width (inches): 0.449 inch.
Net weight: 6.8 g.
Environmental Product Compliance:
REACH SVHC: /.
Concept Pneumatic module:
Colour: beige.
UL 94 flammability rating: V-0.
Dimensions:
Height of plug: 31.4 mm.
Total length base: 34 mm.
Width: 11.4 mm.
General data:
Colour: beige.
Insulation strength: 1012 Ω.
Low smoke acc. DIN EN 45545-2: Yes.
Material: Polycarbonate, glass fibre reinforced.
Number of poles: 3.
Pollution severity: 3.
Rated current (DIN EN 61984): 40 A.
Rated impulse voltage (DIN EN 61984): 8 kV.
Rated voltage (DIN EN 61984): 690 V.
Series: ConCept module.
Surge voltage category: III.
Type: Pin.
Type of connection: Crimp connection.
UL 94 flammability rating: V-0.
Volume resistance: ≤1 mΩ.
Connection data PE:
Connection type PE: Screw connection via module frame.
Version:
Conductor cross-section, max.: 10 mm².
Conductor cross-section, min.: 1.5 mm².
Material: Polycarbonate, glass fibre reinforced.
Stripping length, rated connection: 10 mm.
Type of connection: Crimp connection.
Volume resistance: ≤1 mΩ.
Wire connection cross section AWG, max.: AWG 7.
Wire connection cross section AWG, min.: AWG 16.
