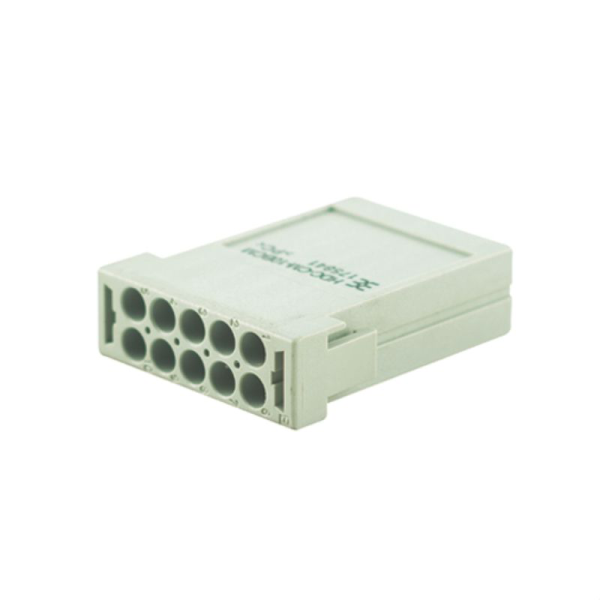

HDC CM 10 FC
SKU: 1758410000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC CM 10 FC:
The CM10 module uses HD-series crimp connections.
The crimp contact has a stainless steel spring.
The top spring maintains a firm and persistent hold on the module's crimp contact.
To disassemble the contacts, there are specialized contact-release instruments available.
The CM10 module can be purchased with or without the inbuilt module release assistance.
For modules with no integrated module-release aid, a removal tool is available.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 34 mm.
Depth (inches): 1.339 inch.
Height: 40.4 mm.
Height (inches): 1.591 inch.
Width: 11.4 mm.
Width (inches): 0.449 inch.
Net weight: 12.2 g.
Environmental Product Compliance:
REACH SVHC: /.
Concept Pneumatic module:
Colour: beige.
UL 94 flammability rating: V-0.
Dimensions:
Height of plug: 40.4 mm.
Total length base: 34 mm.
Width: 11.4 mm.
General data:
Colour: beige.
Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified)
Insulation strength: 1011 Ω.
Low smoke acc. DIN EN 45545-2: Yes.
Material: Polycarbonate, glass fibre reinforced.
Number of poles: 10.
Pollution severity: 3.
Rated current (DIN EN 61984): 10 A.
Rated impulse voltage (DIN EN 61984): 4 kV.
Rated voltage (DIN EN 61984): 250 V.
Series: concept module.
Surge voltage category: III.
Type: Female.
Type of connection: Crimp connection.
UL 94 flammability rating: V-0.
Volume resistance: ≤4 mΩ.
Connection data PE:
Connection type PE: Screw connection via module frame.
Version:
Conductor cross-section, max.: 2.5 mm².
Conductor cross-section, min.: 0.14 mm².
Material: Polycarbonate, glass fibre reinforced.
Stripping length, rated connection: 8 mm.
Type of connection: Crimp connection.
Volume resistance: ≤4 mΩ.
Wire connection cross section AWG, max.: AWG 14.
Wire connection cross section AWG, min.: AWG 26.
