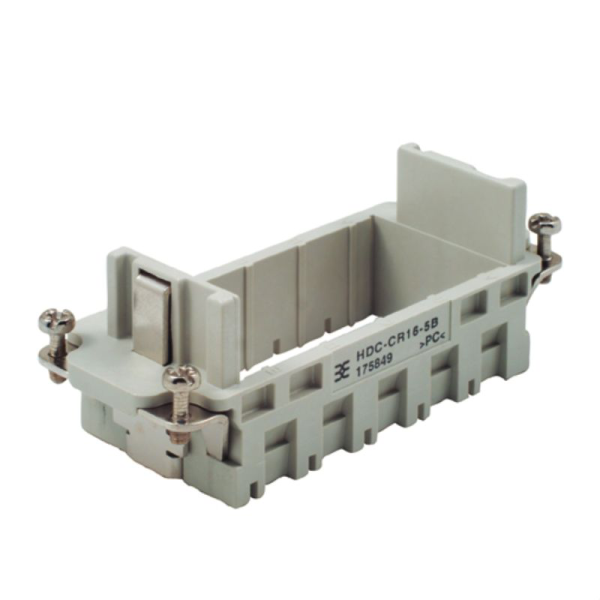

HDC-CR16-5B GR
SKU: 1758490000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC-CR16-5B GR:
The durable CR6 module frames are available in polycarbonate or die-cast zinc.
The frames are designed to accommodate two solitary or double modules.
The CR6 frames are designed to fit inside size-3 housings.
Buy currently uses Select Automation shop pricing and checkout.
Specification dimensions and weights:
Depth: 84.5 mm.
Depth (inches): 3.327 inch.
Height: 35 mm.
Height (inches): 1.378 inch.
Width: 34 mm.
Width (inches): 1.339 inch.
Net weight: 29.94 g.
Temperatures:
Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
REACH SVHC: Potassium perfluoro butane sulfonate 29420-49-3.
SCIP: 2f94735a-9fba-4903-842f-4fb9aa902310.
Concept Pneumatic module:
Colour: beige.
UL 94 flammability rating: V-0.
Dimensions:
Height of plug: 35 mm.
Total length base: 84.5 mm.
Width: 34 mm.
General data:
BG: 6
Colour: beige.
Low smoke acc. DIN EN 45545-2: Yes.
Material: Polycarbonate.
Number of poles: 1.
Series: Concept frame.
Size: 6.
Type: Female.
UL 94 flammability rating: V-0.
Connection data PE:
Connection type PE: Screw connection.
Tightening torque, max. PE connection: 1.5 Nm
Tightening torque, min. PE connection: 1.2 Nm.
Version:
BG: 6.
Material: Polycarbonate.
Size: 6.
Wire connection cross section AWG, max.: AWG 14.
