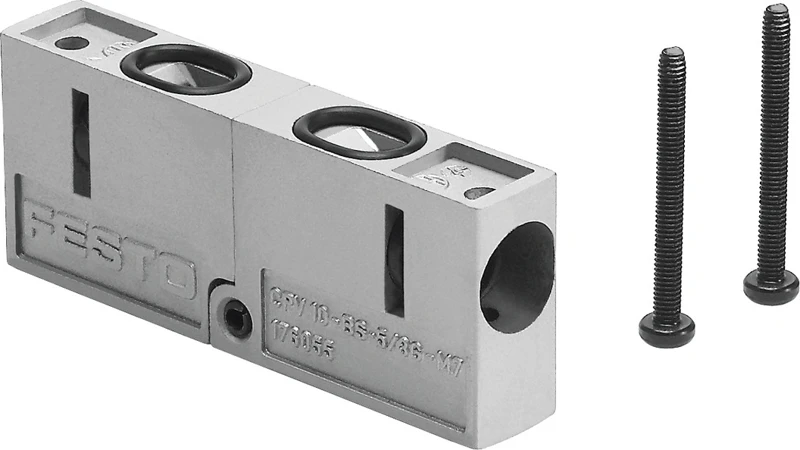

Valve kit, CPV10-BS-5/3G-M7

Specifications • Valve terminal CPV, Compact Performance • Accessories, Valve kit • Valve function 5/3 closed • Pneumatic working port M7 • Operating pressure 2.5 bar ... 10 bar • Nominal size 4 mm • Mounting position optional • Burst pressure 30 bar • Switching time off 30 ms • Switching time on 20 ms • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Shock resistance 30 g/11 ms to EN 60068-2-27 • Corrosion resistance class CRC 1 - Low corrosion stress
