CLI TM 20-66
SKU: 1763390000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
CLI TM 20-66:

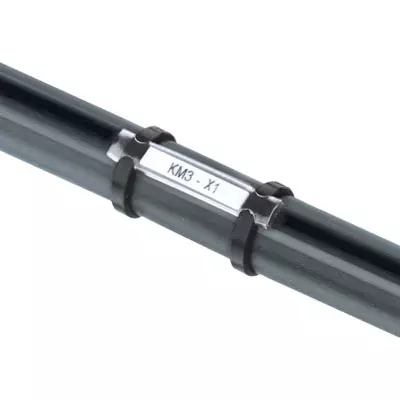

CLI M identification markers are slipped onto CLI MH carrier strips and attached with cable ties.
The technology is best suited to large conductor and cable cross sections.
Advantages:
Cable and pipe markers can be combined together.
One size fits all diameters above 16 mm².
Unrestricted combination options.
Closed markers with permanent attachments.
Very good legibility.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 5 mm.
Depth (inches): 0.197 inch.
Height: 66 mm.
Height (inches): 2.598 inch.
Width: 11.3 mm.
Width (inches): 0.445 inch.
Net weight: 1.3 g.
Temperatures:
Operating temperature range: -30...60 °C.
Environmental Product Compliance:
REACH SVHC: /.
RoHS Compliance Status: Compliant without exemption.
General data:
Colour: Transparent.
Halogen: Yes.
Material: PVC.
Number of markers per combination: 1 Component part = Conductor and cable markers.
Number of markers per packaging unit:
Form of supply: Component part.
Operating temperature range: -30...60 °C.
Operating temperature range, max.: 60 °C.
Operating temperature range, min.: -30 °C.
Recommended industries: Process, Machinery.
Type of printing: Neutral.
UL 94 flammability rating: V-0.
Version: MultiPack.
Width: 11.3 mm.
Conductor and cable markers:
Conductor cross-section, max.: 500 mm².
Conductor cross-section, min.: 16 mm².
Conductor O.D.: 10 - 317 mm.
Conductor O.D., max.: 317 mm.
Conductor O.D., min.: 10 mm.
Cross-section for connected wire: 16 - 500 mm².
Halogen: Yes.
