CLI T 2-15
SKU: 1764240000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

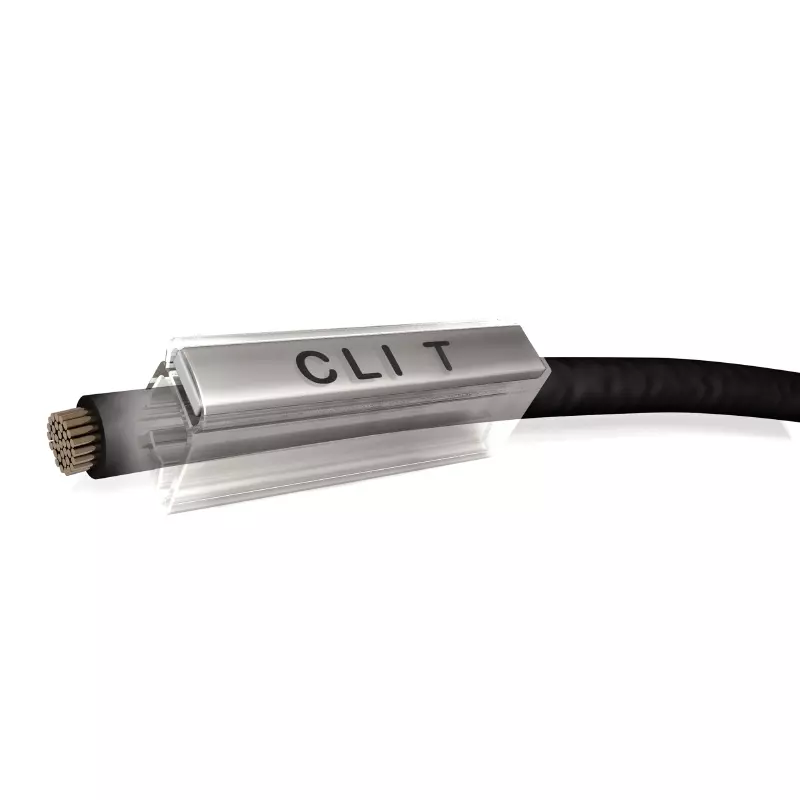

CLI T 2-15:
The CLI T sleeve is a high-quality, transparent sleeve for labelling conductors and cables up to 75 mm².
There are four lengths of the CLI T sleeve, making it feasible to label with lengthy character strings.
The translucent sleeve efficiently protects the inlay tag from extraneous influences.
As an inlay tag, the TM-I marker from the MultiCard and MultiMark portfolios would be appropriate.
greater range of cross-sections for each sleeve.
A unique flexible bellow profile ensures a broad application range.
The TM-I tags can be easily inserted into the sleeve pocket either before or after connecting the conductor.
Available in five lengths.
Not appropriate for labelling with P-Ink or a STI pen.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 13 mm.
Depth (inches): 0.512 inch.
Height: 15 mm.
Height (inches): 0.591 inch.
Width: 5 mm.
Width (inches): 0.197 inch.
Net weight: 0.51 g.
Temperatures:
Operating temperature range: -30...80 °C.
Environmental Product Compliance:
REACH SVHC: /.
RoHS Compliance Status: Compliant without exemption.
General data:
Colour: Transparent.
Halogen: Yes.
Material: PVC.
Operating temperature range: -30...80 °C.
Operating temperature range, max.: 80 °C.
Operating temperature range, min.: -30 °C.
Recommended industries: Transportation, Machinery.
Type of printing: neutral.
UL 94 flammability rating: V-0.
Width: 5 mm.
Conductor and cable markers:
Conductor cross-section, max.: 35 mm².
Conductor cross-section, min.: 4 mm².
Conductor O.D.: 4 - 10 mm.
Conductor O.D., max.: 10 mm.
Conductor O.D., min.: 4 mm.
Cross-section for connected wire: 4 - 35 mm².
Halogen: Yes.
