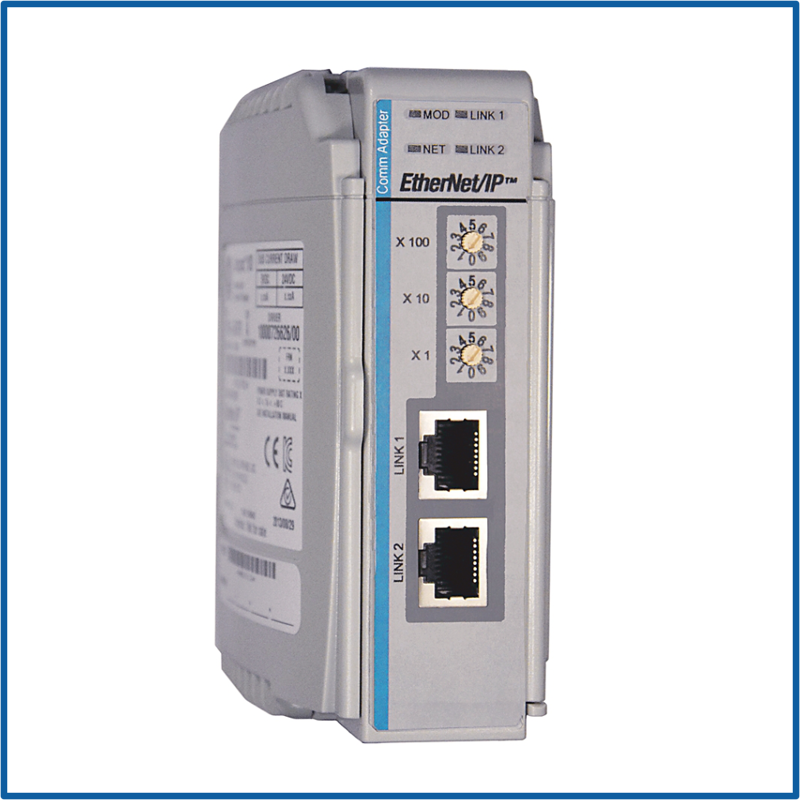

1769 Ethernet/IP Adapter
SKU: 1769-AENTR
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-AENTR is an EtherNet/IP adapter module designed to work with CompactLogix 1769 I/O systems.
It supports dispersed I/O over Ethernet, allowing users to link 1769 I/O modules to a Logix controller across an Ethernet network.
This adapter has twin Ethernet ports, allowing for star, linear, and Device Level Ring (DLR) topologies, which improve network flexibility and resilience.
It is notably handy for customers who want to upgrade to newer CompactLogix controllers while keeping their old 1769 I/O modules.
The module supports up to 128 EtherNet/IP connections, runs at 10/100 Mbps, and employs rotary switches to configure IP addresses.
Buy currently uses Select Automation shop pricing and checkout.
Network & Communication:
Protocol: EtherNet/IP.
Ethernet Ports: 2 RJ45 ports (supporting DLR, linear, and star topologies).
Connection Speed: 10/100 Mbps.
Maximum Connections: Up to 128 EtherNet/IP connections.
IP Address Configuration: Rotary switches or BOOTP/DHCP.
Electrical & Physical:
Power Supply Distance Rating: Supports up to 8 modules.
Isolation Voltage: 50V (continuous), basic insulation; tested at 710V DC for 60 seconds.
Dimensions (H x W x D): Approx. 132 mm x 56.7 mm x 105.1 mm.
Mounting: DIN rail or panel mount.
Environmental & Compliance:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Certifications: UL, CE, cUL.
Lifecycle Status: Active Mature.
