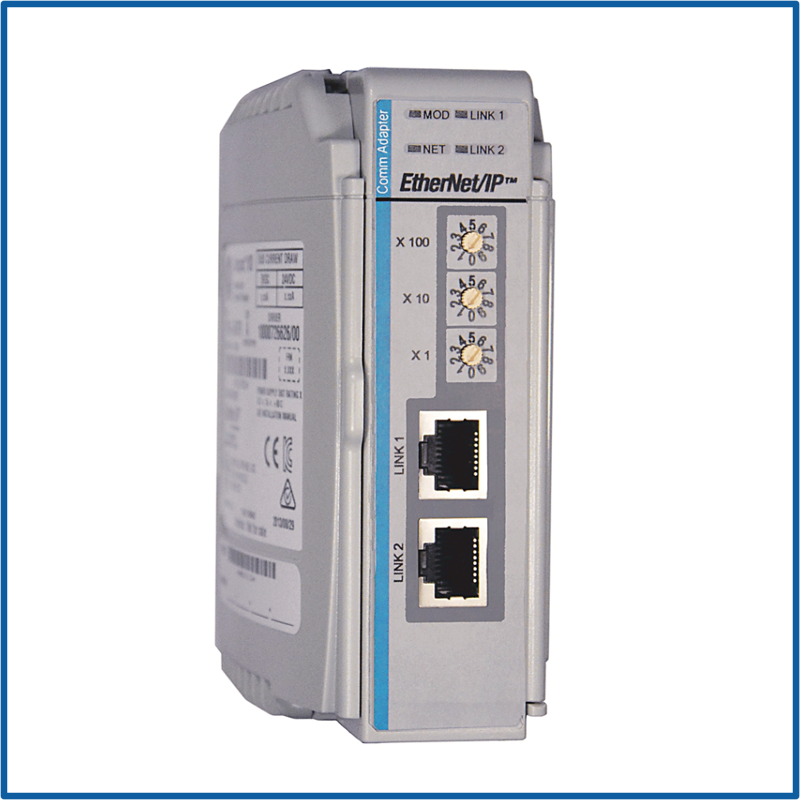

1769 Ethernet/IP Adapter
SKU: 1769-AENTRK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
By enabling 1769 I/O modules to connect to a Logix controller over EtherNet/IP, the Allen-Bradley 1769-AENTRK permits distributed control.
It's a member of the Armor CompactLogix series, designed for harsh, dispersed deployments in which the adapter is installed directly to the machine, removing the need for protective enclosures.
The key features include:
Dual Ethernet ports with Device Level Ring (DLR) capability provide network resilience.
IP67-rated enclosure protects against dust and water.
Supports up to eight 1769 I/O modules.
Allows for the reuse of existing 1769 I/O in newer Ethernet/IP designs, which simplifies migration.
Conformal coating provides increased environmental durability.
DIN rail-free mounting allows for flexible installation.
This adapter is excellent for industries like as automotive, packing, and material handling that require reliable, panel-free control systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 1769-AENTRK.
Communication Protocol: EtherNet/IP.
Ethernet Ports: 2 × RJ45 with Device Level Ring (DLR) support.
Compatible I/O Modules: Supports up to 8 1769 I/O modules.
Protection Rating: IP67 (dust-tight and water-resistant).
Mounting: On-machine, panel-free installation.
Insulation Rating: 50V continuous, tested at 710V DC for 60 seconds.
Power Supply: 24V DC.
Conformal Coating: Yes (for enhanced environmental protection).
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Cable Requirements: Cat 5e or Cat 5 (TIA 568-B.1 or ISO/IEC 24702 compliant).
Certifications: UL, CE, KC, C-TICK, Marine, GOST.
Lifecycle Status: Active Mature.
