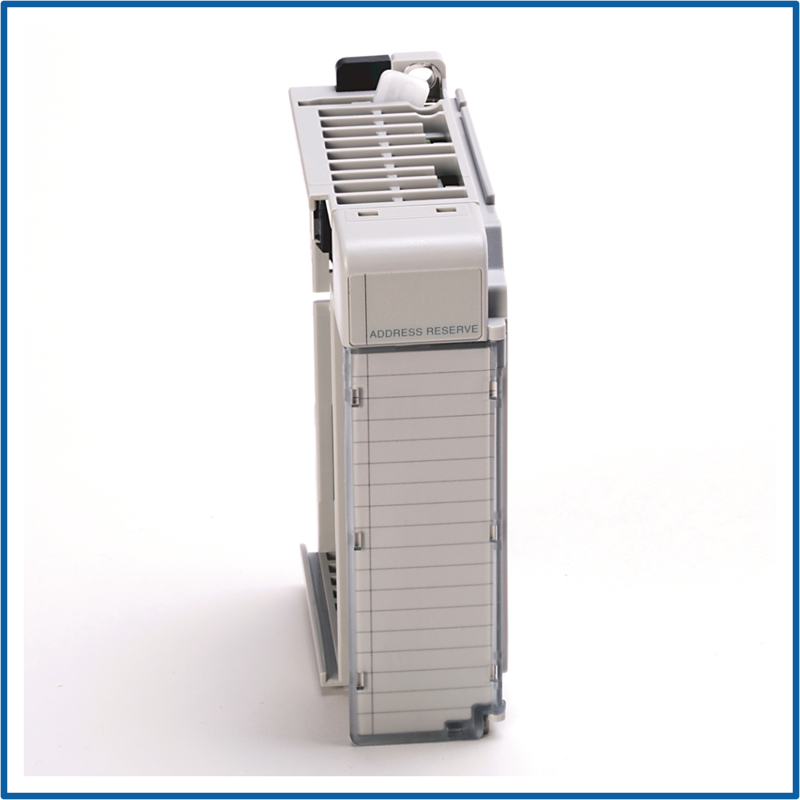

CompactLogix Address Reserve Module
SKU: 1769-ARM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 1769-ARM is a passive module that is used to reserve a slot in a 1769 I/O system without providing any control or I/O operations.
It's frequently used in circumstances like:
A module was temporarily removed.
Future expansion is expected.
Consistent I/O addressing is necessary for system upgrades and maintenance.
By placing the 1769-ARM into a slot, users can avoid reprogramming or reconfiguring the controller due to module position changes.
This improves system stability and simplifies troubleshooting and upgrades.
It has the same physical dimensions as regular 1769 modules and fits neatly on a DIN rail or panel mount with other CompactLogix components.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 1769-ARM.
Function: Passive module used to reserve a slot in a 1769 I/O system.
Electrical Role: No electrical function; does not perform control or I/O tasks.
Compatible Systems: CompactLogix 1769 series and MicroLogix 1500.
Mounting: Standard 1769 DIN rail or panel mount.
Dimensions: Same physical size as standard 1769 modules.
Power Requirements: None (passive device).
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Conformal Coating: Not applicable.
Certifications: UL, CE, CSA.
Lifecycle Status: Active Mature.
