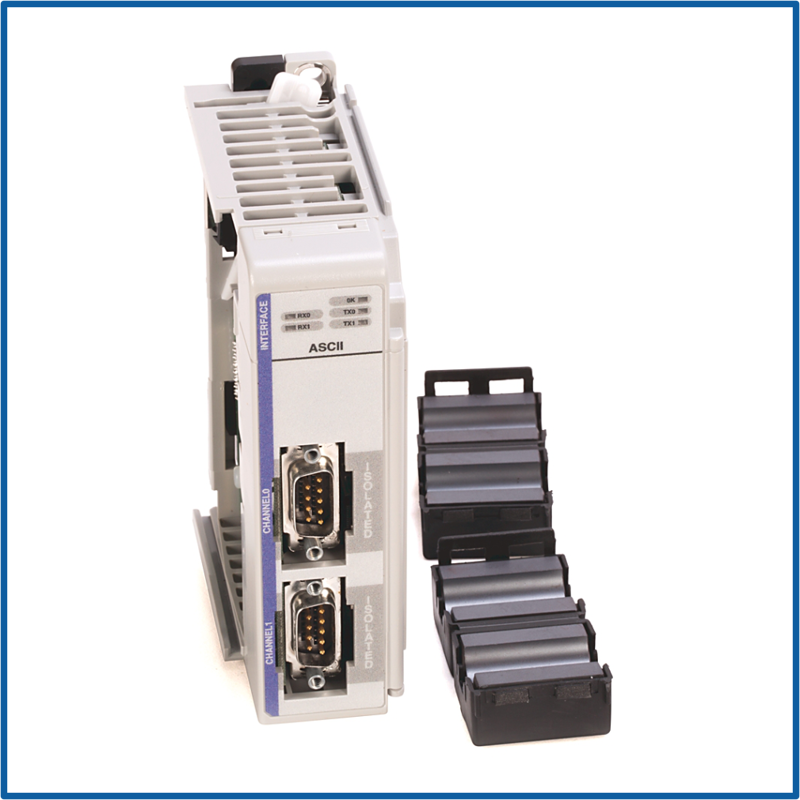

CompactLogix ASCII Interface Module
SKU: 1769-ASCII
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 1769-ASCII module is intended to incorporate ASCII-compatible serial devices, including as barcode scanners, printers, weigh scales, and operator terminals, into Logix-powered control systems.
It supports RS-232 serial communication, which enables easy, text-based data transmission between the controller and external devices.
This module is suitable for industrial applications that require:
Read and write ASCII strings.
Interface with vintage or specialized equipment.
Simplified integration without bespoke drivers or difficult code.
It readily integrates into a 1769 I/O system and is programmed with RSLogix 5000 or Studio 5000 software, offering it a versatile option for packaging, material handling, and industrial environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 1769-ASCII.
Communication Type: RS-232 serial (ASCII protocol).
Baud Rates Supported: 110 to 115.2 kbps.
Data Bits: 7 or 8.
Stop Bits: 1 or 2.
Parity Options: None, Even, Odd.
Flow Control: Hardware (RTS/CTS), Software (XON/XOFF), or None.
Connector Type: DB9 female.
Compatible Controllers: CompactLogix 1769 series, MicroLogix 1500.
Mounting: DIN rail or panel mount.
Power Supply: 5V DC from backplane.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Conformal Coating: Not standard.
Certifications: UL, CE, CSA.
Lifecycle Status: Active Mature.
