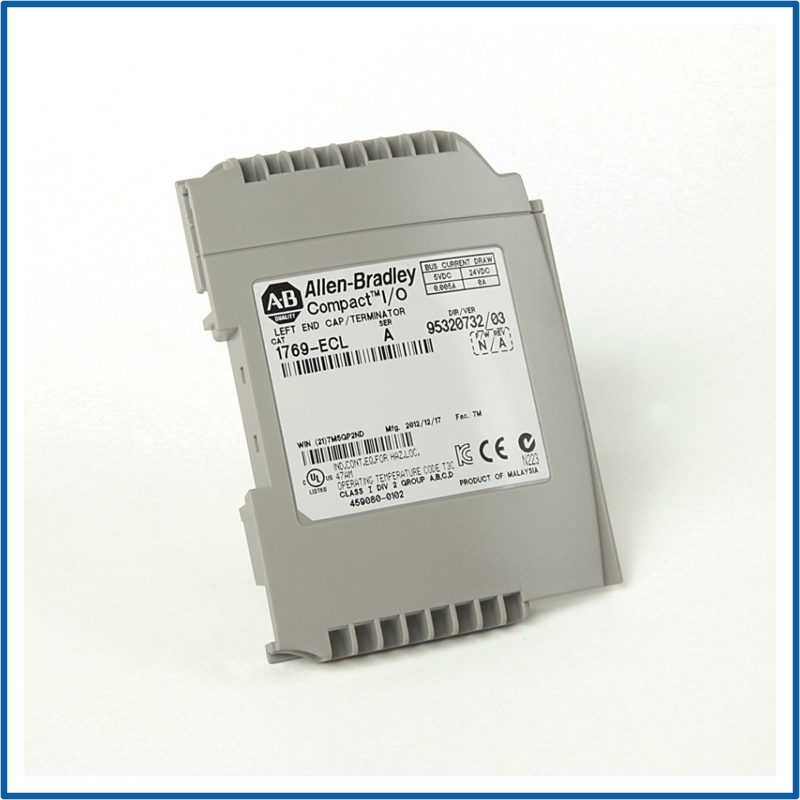

CompactLogix Left End Cap
SKU: 1769-ECL
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-ECL is a left end cap (terminator) for Allen-Bradley CompactLogix 1769 systems.
It terminates the left end of a module chain, guaranteeing effective communication and shielding inside the system.
Orientation: Left-side termination.
Function: Shuts off the communication bus to ensure signal integrity.
Compatible with CompactLogix 1769 I/O modules and MicroLogix 1500 systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: 1769-ECL.
Manufacturer: Allen-Bradley / Rockwell Automation.
Product Type: Bus Terminator / End Cap.
Orientation: Left-side termination.
Dimensions: 87 mm × 15 mm × 118 mm.
Weight: Approximately 0.04 kg.
Current Draw: 5 mA at 5.1 V DC.
Enclosure Type: Open.
Operating Temperature Range: 0°C to 60°C (32°F to 140°F).
Certifications: UL, cUL, CE, C-TICK, CCC, KC, Marine.
Country of Origin: United States.
