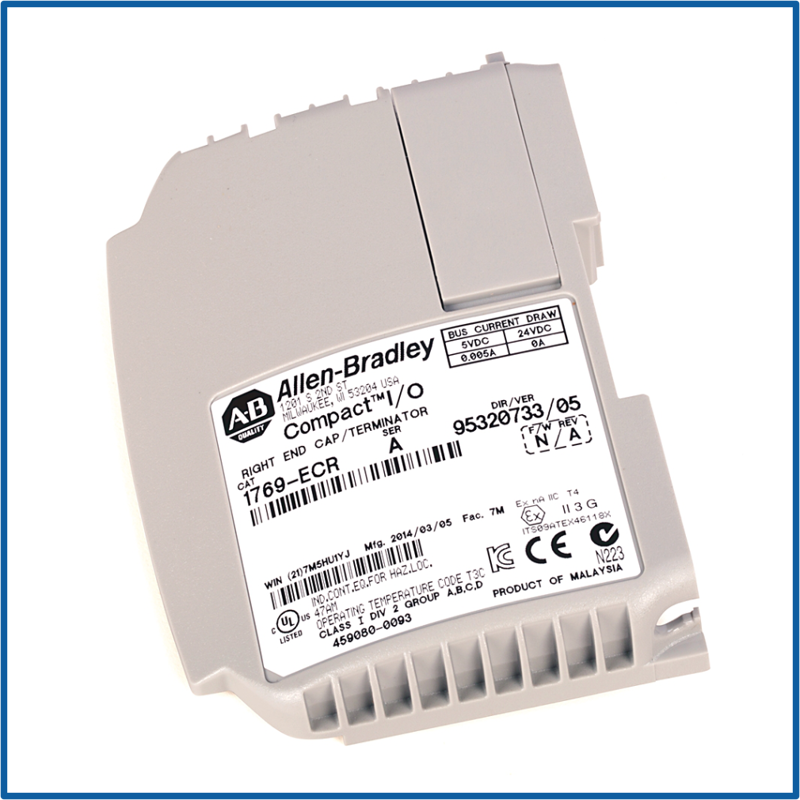

CompactLogix Right End Cap
SKU: 1769-ECRK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-ECRK is a right end cap module for CompactLogix and MicroLogix 1500 systems.
It is the terminating point for the 1769 I/O communication bus, maintaining electrical and communication integrity throughout the module group.
The ECRK, located at the rightmost end of a bank of 1769 I/O modules, is required to complete the system configuration.
Without it, the I/O bus may not function properly, resulting in communication issues or system problems.
This module is tiny, quick to install, and built to resist industrial settings, making it an essential component of any CompactLogix configuration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: 1769-ECRK.
Function: Terminates the 1769 I/O communication bus at the right end of a module group.
Current Draw: 5 mA at 5.1 VDC.
Power Dissipation: 7.5 Watts.
Dimensions: 12.5 cm × 8.3 cm × 2.5 cm.
Weight: 130 g (0.286 lb).
Enclosure Type: Open style.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Shock Resistance:
20 g when DIN rail mounted.
30 g when panel mounted.
Vibration Resistance: 5 g, 10–500 Hz.
Compatibility: CompactLogix and MicroLogix 1500 systems.
Lifecycle Status: Active Mature.
