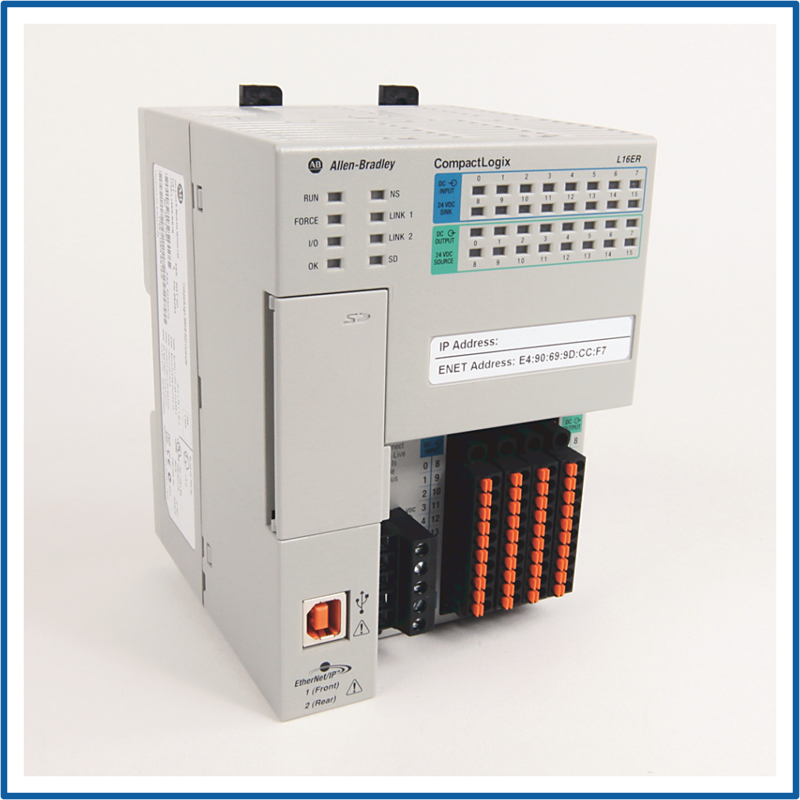

CompactLogix L16 384KB Ctlr
SKU: 1769-L16ER-BB1B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This controller packs 384KB of user memory, embedded digital I/O, and dual Ethernet/IP ports into a single package.
It uses the Device Level Ring (DLR) topology for network resilience and contains a 1GB SD card for non-volatile storage.
The controller is powered by 24V DC and can accommodate up to four Ethernet nodes, making it perfect for dispersed control systems with limited space.
Memory: 384KB user memory; 1GB SD card provided.
Embedded I/O:
16 digital inputs (24 volts DC).
16 digital outputs (24 volts DC).
Communication:
Dual Ethernet/IP ports with DLR compatibility.
USB programming port.
Expansion Support:
There are up to six 1769 I/O modules.
There are up to four Ethernet/IP nodes.
Power source: 24V DC.
Mounting: DIN rail.
Buy currently uses Select Automation shop pricing and checkout.
Memory & Processing:
User Memory: 384KB.
Non-volatile Storage: 1GB Secure Digital (SD) card included (expandable to 2GB).
Controller Tasks: Supports up to 32 tasks, each with up to 100 programs.
Embedded I/O:
Digital Inputs: 16 (24V DC, sink type).
Digital Outputs: 16 (24V DC, source type).
Communication:
EtherNet/IP Ports: 2 (supporting Device Level Ring topology).
USB Port: 1 (for programming and diagnostics).
Supported Ethernet/IP Nodes: Up to 4.
Expansion & Compatibility:
I/O Expansion: Supports up to 6 1769 I/O modules.
Programming Software: Studio 5000 Logix Designer.
Mounting: DIN rail.
Power & Environmental:
Power Supply: 24V DC.
Isolation Voltage: 50V continuous (basic insulation), tested at 500V AC for 60 seconds.
Operating Temperature: –20°C to +65°C.
Certifications: UL, CE, C-TICK, KC.
