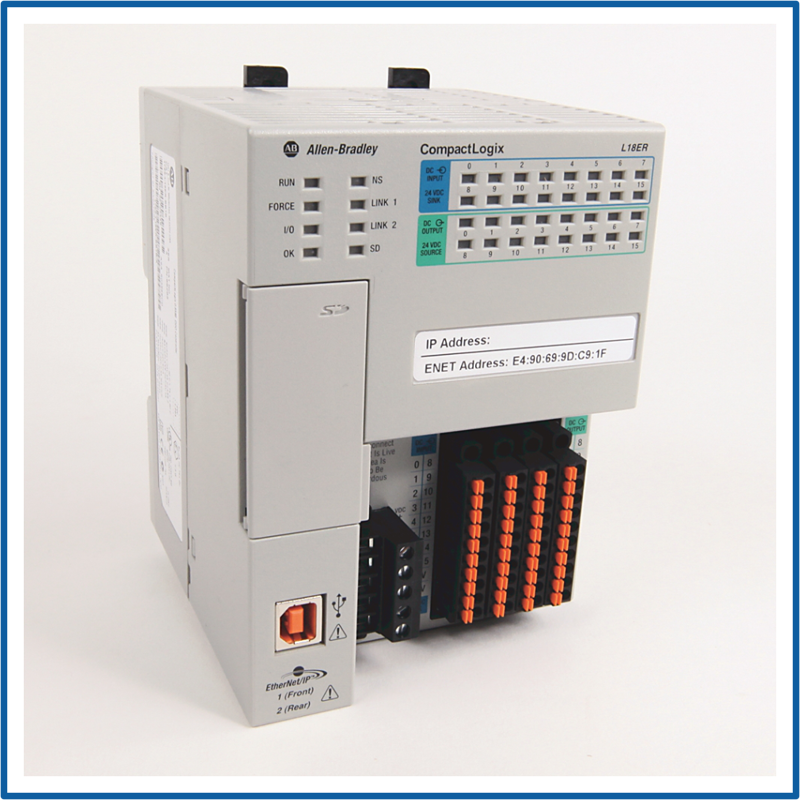

CompactLogix L18 512KB Ctlr
SKU: 1769-L18ER-BB1B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This controller packs 512KB of user memory, embedded digital I/O, and two Ethernet connections into a single package.
It uses the Device Level Ring (DLR) topology for network resilience and includes a 1GB SD card for nonvolatile storage (expandable up to 2GB).
The controller is powered by 24V DC and can accommodate up to 8 Point I/O modules and 8 Ethernet/IP nodes, making it perfect for dispersed control systems.
Memory: 512KB user memory with 1GB SD card provided.
Embedded I/O:
16 digital inputs (24 volts DC).
16 digital outputs (24 volts DC).
Communication:
Dual Ethernet/IP ports with DLR compatibility.
USB programming port.
Expansion Support:
There are up to eight Point I/O modules.
There are up to eight Ethernet/IP nodes.
Power source: 24V DC.
Mounting: DIN rail.
Buy currently uses Select Automation shop pricing and checkout.
Memory & Processing:
User Memory: 512KB.
SD Card: 1GB included (supports up to 2GB).
Controller Type: CompactLogix 5370 L1.
Processor: High-speed processor for real-time control.
Embedded I/O:
Digital Inputs: 16 (24V DC).
Digital Outputs: 16 (24V DC sourcing).
Communication:
Ethernet/IP Ports: 2 (supporting Device Level Ring topology).
USB Port: 1 (for programming and configuration).
Supported Ethernet Nodes: Up to 8.
Expansion & Compatibility:
I/O Expansion: Supports up to 8 POINT I/O modules (1734 series).
Programming Software: Studio 5000 Logix Designer.
Mounting: DIN rail.
Power & Environmental:
Power Supply: 24V DC.
Operating Temperature: –20°C to +65°C.
Certifications: UL, CE, C-TICK, KC.
