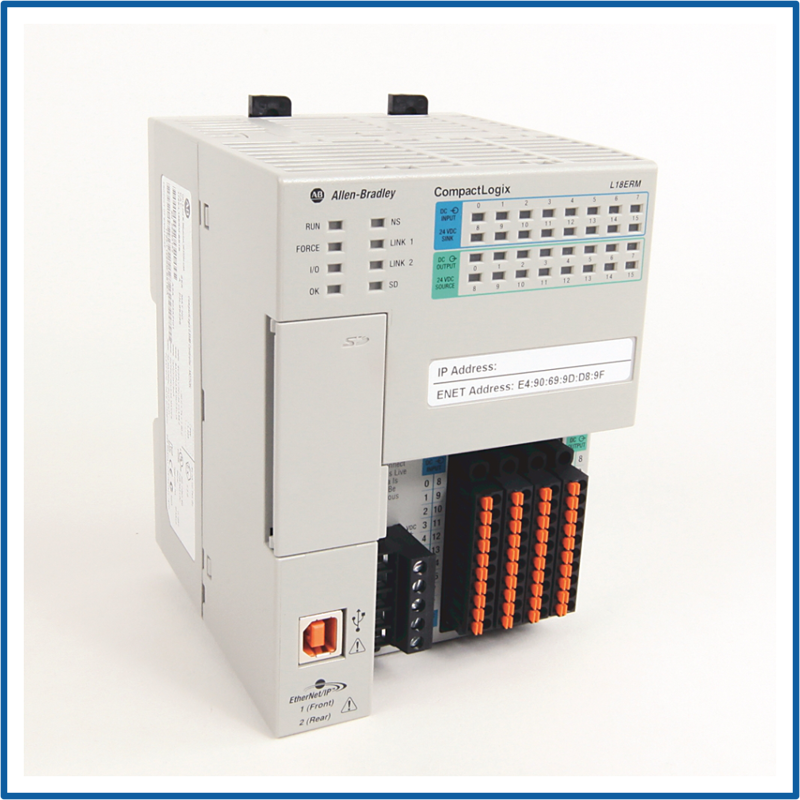

CompactLogix L18 512KB Ctlr-Motion
SKU: 1769-L18ERM-BB1B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-L18ERM-BB1B is part of the CompactLogix 5370 L1 family, which is intended for small to medium-sized automation systems that require integrated motion control.
It integrates controller, embedded I/O, and communication ports in a small package, making it perfect for machine-level applications that require limited space.
Memory: 512KB user memory with 1GB SD card provided.
Embedded I/O:
16 digital inputs (24 volt DC sink).
16 digital outputs (powered by a 24-volt DC source).
Motion Control: Supports up to two integrated motion axes via EtherNet/IP.
Communication:
Dual Ethernet/IP ports, including Device Level Ring (DLR) capability.
USB programming port.
Expansion:
There are up to eight POINT I/O modules.
There are up to eight Ethernet/IP nodes.
Power source: 24V DC.
Mounting: DIN rail.
Buy currently uses Select Automation shop pricing and checkout.
Memory & Processing:
User Memory: 512KB.
SD Card: 1GB included (expandable to 2GB).
Controller Tasks: Supports up to 32 tasks, with up to 100 programs per task.
Embedded I/O:
Digital Inputs: 16 (24V DC, sink type).
Digital Outputs: 16 (24V DC, source type).
Motion Control:
Integrated Motion Axes: Supports up to 2 axes over EtherNet/IP.
Motion Type: Coordinated motion control for servo drives.
Communication:
EtherNet/IP Ports: 2 (supporting Device Level Ring topology).
USB Port: 1 (for programming and diagnostics).
Supported EtherNet/IP Nodes: Up to 8.
Expansion & Compatibility:
I/O Expansion: Supports up to 8 POINT I/O modules (1734 series).
Programming Software: Studio 5000 Logix Designer.
Mounting: DIN rail.
Power & Environmental:
Power Supply: 24V DC.
Isolation Voltage: 50V continuous (basic insulation), tested at 500V AC for 60 seconds.
Operating Temperature: –20°C to +65°C.
Certifications: UL, CE, C-TICK, KC.
